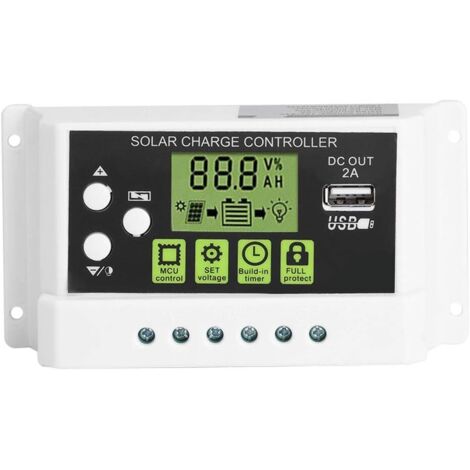

Solar Panel Charge Controller, Akozon PWM Intelligent Solar Charge Regulator LCD Display USB Output 12V 24V 10/20/30A Solar Panel Battery Regulator (KYZ-20A)

General descriptionThe Akozon PWM Intelligent Solar Charge Regulator is designed to efficiently manage the charging of batteries from solar panels. It features an LCD display and USB output, making it suitable for both 12V and 24V systems with varying charging currents of 10A, 20A, or 30A. This charge controller is ideal for users looking to optimize their solar energy usage.Technical specificationsModel: KYZ-10A/KYZ-20A/KYZ-30ABattery Voltage: 12V/24V self-adaptiveCharging Current: 10A/20A/30ADischarge Current: 10AMax Solar Input: Equalization Voltage: Lithium Battery: 12.8V, Lead Acid Battery: 14.4VFloat Charge Voltage: Lithium Battery: 12.0V (adjustable 11.5-12.8V), Lead Acid Battery: 13.7V (adjustable 13-15V)Undervoltage Protection: Lithium Battery: 10.7V (adjustable 9.0-11.0V), Lead Acid Battery: 10.7V (adjustable 9.0-11.5V)Discharge Reconnect Voltage: Lithium Battery: 11.6V (adjustable 11.0-11.7V), Lead Acid Battery: 12.6V (adjustable 11.5-13V)Standby Current: USB Output: 5V/2AMax Operating Temperature: -35~60°CSize: 133*70*35mm (5.2 * 2.7 * 1.3in)Weight: approx. 205g (7.2oz)InstallationEnsure battery voltage is sufficient for the controller to recognize the battery type before installation.Keep battery cables as short as possible to minimize loss.Install the controller in a well-ventilated area to prevent overheating during operation.UsageThis controller is specifically designed for regulating solar modules.Do not connect another charging source to the controller.Be aware that the controller may become hot during operation.
