Product information

Description

General description

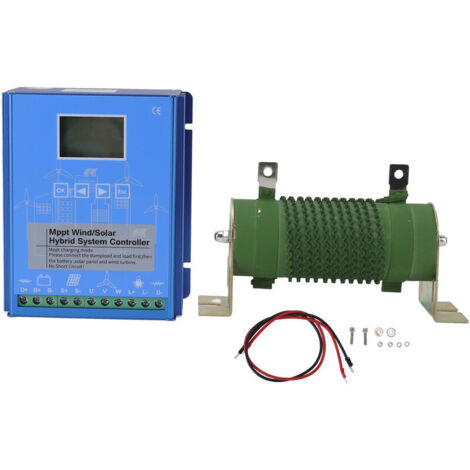

The solar wind controller is a hybrid device designed for efficient energy management in small off-grid wind and solar power systems. It features a large LCD display that provides real-time information on battery status, solar power, charging voltage, and current. The controller utilizes advanced MPPT technology to enhance charging efficiency from both wind and solar sources.

Technical specifications

Item Type: Hybrid solar wind controller

Material: Aluminum, Iron

Weight: Approx. 2216g/78.2oz

Size: Approx. 168x145x61mm/6.6x5.7x2.4in

System Nominal Voltage: Automatic identification 12/24V

Wind Turbine Nominal Power: 300W, 600W, 400W, 800W, 500W, 1000W

PV Module Nominal Power: 300W, 600W, 300W, 600W, 500W, 1000W

Maximum Input Voltage: Wind Turbines No-load Current (DC): ≤0.05A

Operating Temperature and Humidity Range: -20~+55℃/35~85% RH (no condensation)

Compatibility and accessories

Applicable Battery: General-purpose lithium-acid battery

Package List: 1x Main Control Unit, 1x Resistor, 2x Cables, 2x Screws, 2x Nuts, 2x Washers, 1x Manual

Installation

Ensure proper connection of the battery and solar panel to the controller

Follow the manual for detailed installation instructions

Usage

Monitor battery voltage, discharge current, and temperature via the LCD display

Utilize the controller in various operating modes: pure light control mode, normally open mode, light control + time control mode

Adjust charge output in different working modes as needed

Other information

Protection features include reverse charging protection, open circuit protection, reverse connection protection, overcurrent and overvoltage protection, and overcharge protection

The internal circuit board is treated with triple-proof paint for dust, moisture, and static electricity protection

Features

Brand
SNQ
Amperage
1 A
Material
Aluminium
Weight
2216 g
Voltage
24 V
