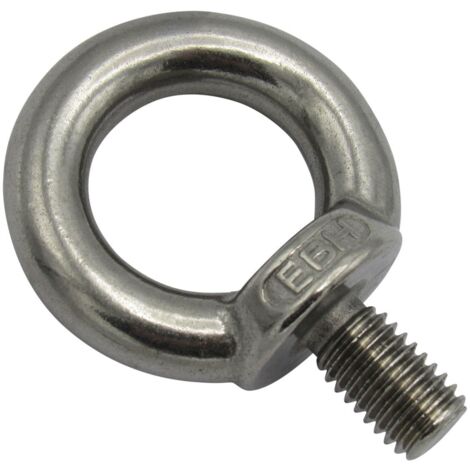

Stainless Eye Bolt M24 DIN580 (Steel Eyebolts Metric Thread Hole Attachment)

Name: Stainless Eye Bolt M24 DIN580 (Steel Eyebolts Metric Thread Hole Attachment)
Brand: SECUREFIX DIRECT
SKU: SFSSEB24
Price: 20 GBP
Availability: InStock

Sold by SecureFix Direct

Product information

Description

General description

These Stainless Eye Bolts M24 DIN580 are made from 316 Grade Stainless Steel, providing excellent rust protection and durability. They are suitable for a wide range of applications, particularly popular in the marine industry due to their robust construction.

Technical specifications

Thread Diameter: M24

Material: 316 Grade Stainless Steel

Breaking Load (KG): 428 (SFSSEB06), 836 (SFSSEB08), 1377 (SFSSEB10), 2040 (SFSSEB12), 4202 (SFSSEB16), 7201 (SFSSEB20), 10801 (SFSSEB24), 19206 (SFSSEB30)

Dimensions (A, B, C, D, E, F, G, H in MM): SFSSEB06 (17, 28, 16, 6, 6, 14, 6, 11), SFSSEB08 (20, 35, 20, 8, 6, 16, 7, 13), SFSSEB10 (24, 44, 25, 10, 7.5, 20, 9, 16.5), SFSSEB12 (29, 52, 30, 12, 10, 25, 11, 20), SFSSEB16 (34, 61, 34, 16, 12, 29, 13, 26), SFSSEB20 (39, 70, 39, 20, 13.5, 34, 15, 30), SFSSEB24 (50, 89, 49, 24, 18, 45, 19, 33), SFSSEB30 (64, 105, 59, 30, 23, 54, 23, 45)

Other information

Product Code: SFSSEB24

Features

Brand
SECUREFIX DIRECT
Material
Steel / Stainless steel
Product finish
Stainless steel
Metric thread not standard thread
M24
Certification body
DIN
