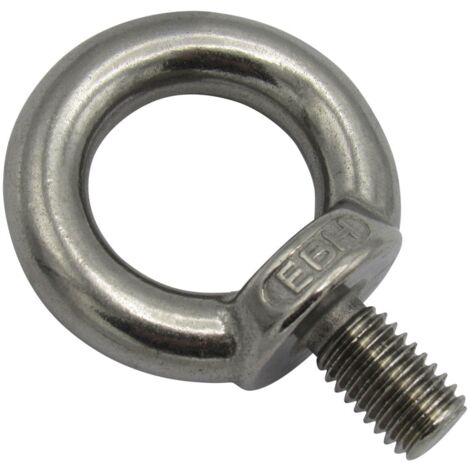

Stainless Eye Bolt M6 DIN580 (Steel Eyebolts Metric Thread Hole Attachment)

Name: Stainless Eye Bolt M6 DIN580 (Steel Eyebolts Metric Thread Hole Attachment)
Brand: SECUREFIX DIRECT
SKU: SFSSEB06
Price: 4 GBP
Availability: InStock

Sold by SecureFix Direct

Product information

Description

General description

These Stainless Eye Bolts M6 DIN580 are made from 316 Grade Stainless Steel, providing excellent rust protection and durability. They are suitable for a wide range of applications, particularly popular in the marine industry due to their robust construction.

Technical specifications

Thread Diameter: M6

Material: 316 Grade Stainless Steel

Breaking Load (KG): SFSSEB06 - 428, SFSSEB08 - 836, SFSSEB10 - 1377, SFSSEB12 - 2040, SFSSEB16 - 4202, SFSSEB20 - 7201, SFSSEB24 - 10801, SFSSEB30 - 19206

Dimensions (A, B, C, D, E, F, G, H in MM): SFSSEB06 - 17, 28, 16, 6, 6, 14, 6, 11; SFSSEB08 - 20, 35, 20, 8, 6, 16, 7, 13; SFSSEB10 - 24, 44, 25, 10, 7.5, 20, 9, 16.5; SFSSEB12 - 29, 52, 30, 12, 10, 25, 11, 20; SFSSEB16 - 34, 61, 34, 16, 12, 29, 13, 26; SFSSEB20 - 39, 70, 39, 20, 13.5, 34, 15, 30; SFSSEB24 - 50, 89, 49, 24, 18, 45, 19, 33; SFSSEB30 - 64, 105, 59, 30, 23, 54, 23, 45

Features

Brand
SECUREFIX DIRECT
Pcs per pack
1
Material
Stainless steel
Colour
Multicolour
Weight
100 g
Type of bolt
Classic
ManoMano Reference
ME27127900
MMID
941170336923
Product code
SFSSEB06
EAN
707152587037
