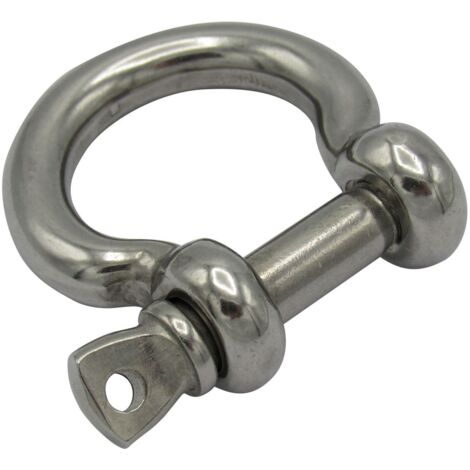

Stainless Steel Bow Shackle 8MM with Screw Collar Pin (316 A4 Marine Grade Rigging)

Sold by SecureFix Direct

You may also like

8mm STAINLESS STEEL 316 (A4) Long D shackle

8mm STAINLESS STEEL 316 (A4) Long D shackle

1
10mm STAINLESS STEEL 316 (A4) Long D shackle

10mm STAINLESS STEEL 316 (A4) Long D shackle

1
12mm STAINLESS STEEL 316 (A4) D shackle

12mm STAINLESS STEEL 316 (A4) D shackle

1
X10 25MM Zinc Plated Simplex Hooks - Dog Clip Lanyards Camping Craft Wim WomSECUREFIX DIRECT

X10 25MM Zinc Plated Simplex Hooks - Dog Clip Lanyards Camping Craft Wim Wom

1
Free delivery
Stainless Steel D Shackle with Allen Screw Head 6MM (Dee Rigging Flush Marine)SECUREFIX DIRECT

Stainless Steel D Shackle with Allen Screw Head 6MM (Dee Rigging Flush Marine)

Free delivery
Stainless Steel Toggle Fork 6MM (Rigging Jaw Shackle Cable Wire Connector)SECUREFIX DIRECT

Stainless Steel Toggle Fork 6MM (Rigging Jaw Shackle Cable Wire Connector)

Free delivery
Stainless Steel Ring Eye Bolt 6MM (Eyebolt Ringbolt Long Shank Marine Boat)SECUREFIX DIRECT

Stainless Steel Ring Eye Bolt 6MM (Eyebolt Ringbolt Long Shank Marine Boat)

Free delivery
Stainless Steel Strip Dee Shackle 8MM (D Flat Rigging Marine Rope)SECUREFIX DIRECT

Stainless Steel Strip Dee Shackle 8MM (D Flat Rigging Marine Rope)

Free delivery
Swivel Snap Shackle Stainless Steel 70MM (Hook Karabiner Quick Release Marine)SECUREFIX DIRECT

Swivel Snap Shackle Stainless Steel 70MM (Hook Karabiner Quick Release Marine)

Free delivery
Long D Shackle Stainless Steel 8MM (Marine Boat Rigging Sails Halyards Dee)SECUREFIX DIRECT

Long D Shackle Stainless Steel 8MM (Marine Boat Rigging Sails Halyards Dee)

Free delivery
Fixed Snap Shackle Stainless Steel 70MM (Marine Grade 316)SECUREFIX DIRECT

Fixed Snap Shackle Stainless Steel 70MM (Marine Grade 316)

Free delivery
0.5 Ton Bow Shackles With Screw Pin X2 - 500KG Lifting 1/4" x 5/16"SECUREFIX DIRECT

0.5 Ton Bow Shackles With Screw Pin X2 - 500KG Lifting 1/4" x 5/16"

Free delivery
X2 0.5 Ton Self Colour Large Dee Shackles With Screw Pin - 500KG D High Tensile Lifting TowingSECUREFIX DIRECT

X2 0.5 Ton Self Colour Large Dee Shackles With Screw Pin - 500KG D High Tensile Lifting Towing

Free delivery
Stainless Steel Ring Eye Bolt 10MM (Eyebolt Ringbolt Long Shank Marine Boat)SECUREFIX DIRECT

Stainless Steel Ring Eye Bolt 10MM (Eyebolt Ringbolt Long Shank Marine Boat)

Free delivery
M18 Lifting Eye Bolt - Self Coloured Collared Threaded Eyebolt BS4278 1 Ton 18MMSECUREFIX DIRECT

M18 Lifting Eye Bolt - Self Coloured Collared Threaded Eyebolt BS4278 1 Ton 18MM

Free delivery
Standard Galvanised Canal Windlass - Boat Handle Lock Key Waterways River Trust Double RotatingSECUREFIX DIRECT
#1 in sales

Standard Galvanised Canal Windlass - Boat Handle Lock Key Waterways River Trust Double Rotating

1
Free delivery
2.75 Ton Galvanised Large Bow Shackle With Screw Pin - BS3032 2750KG Lifting Towing TestedSECUREFIX DIRECT

2.75 Ton Galvanised Large Bow Shackle With Screw Pin - BS3032 2750KG Lifting Towing Tested

Free delivery
Safety Pin Bow Shackle 150 Ton (Lifting Galvanised Large 150000KG)SECUREFIX DIRECT

Safety Pin Bow Shackle 150 Ton (Lifting Galvanised Large 150000KG)

Free delivery
6mm STAINLESS STEEL 316 (A4) Long D shackle

6mm STAINLESS STEEL 316 (A4) Long D shackle

1
Porthole Boat Window Oval (Ship Marine Narrowboat Yacht Port Hole)SECUREFIX DIRECT

Porthole Boat Window Oval (Ship Marine Narrowboat Yacht Port Hole)

Free delivery

Compare with similar items

Product information

Description

General description

Stainless Steel Bow Shackles with Screw Collar Pins are essential components for connecting various parts, primarily used with chains and ropes. These shackles are particularly favored in the marine industry due to their construction from 316 Grade Stainless Steel, which provides excellent rust protection.

Technical specifications

  • Body & Pin Diameter (Size): 8MM
  • Metal: 316 Grade Stainless Steel
  • Breaking Load: 2417 KG
  • Dimensions:
  • A (MM): 7.8
  • B (MM): 7.8
  • C (MM): 16
  • D (MM): 16
  • E (MM): 27.9
  • F (MM): 28
  • G (MM): 14

    • Other information

  • Product Code: SFSSB08
  • We supply a wide variety of stainless steel parts.

    • Features

    • Brand
      SECUREFIX DIRECT
    • Weight
      100 g
    • Material
      Stainless steel
    • Pcs per pack
      1
    • Warranty
      1 year(s)
