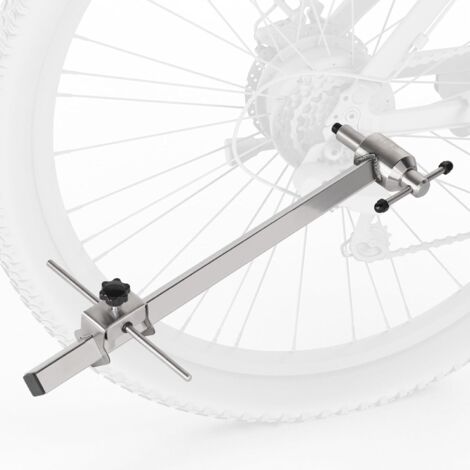

Stainless Steel Derailleur Hanger Straightening Tool for Bicycles with 26", 27.5" (650B) and 29" (700C) Wheels, for Correcting Deformed Derailleur Hangers
You may also like
Compare with similar items
Product information
Description
🔹【Professional Repair】80% of shifting problems are related to a derailleur hanger deformation. With this tool set, the derailleur hanger can be precisely aligned to effectively resolve issues such as misaligned derailleur or faulty shifting, saving you time and workshop costs.
🔹【Measurement Accuracy】Equipped with a graduated ruler with low drift. To accurately measure and adjust the derailleur hanger, ensure the rim is flat and the derailleur has been removed from the hanger.
🔹【Method of Use】Uses the four-point measurement method (A/B/C/D) to simultaneously correct horizontal (A/B) and front/rear (C/D) offsets, ensuring the derailleur hanger is perfectly parallel to the rim. Please see the description below for the detailed procedure.
🔹【High Quality】Made of stainless steel, wear- and rust-resistant; segmented design prevents longitudinal play or tool deflection under stress during use.
Installation Method:
(Adjust the tension between the positioning rod and the main rod beforehand to prevent play or overtightening. Check the tightness before each use to ensure measurement accuracy.)
① Screw the threaded end of the positioning rod into the hole in the derailleur hanger.
② Using the positioning rod as the axis, rotate the main rod to position A. Adjust the sliding sleeve and measuring ruler so their tips touch the rim, Then note the value.
③ Rotate the main stem 180° to position B, readjust the sleeve and ruler to touch the rim, then note the value and compare it to that of position A.
🔹Case 1: If B is more than 3 mm greater than A → bend the derailleur hanger towards the rim.
🔹Case 2: If B is more than 3 mm less than A → bend the derailleur hanger away from the rim.
(Gap ≤ 3 mm? No adjustment necessary.)
④ Similarly, use position A as a reference to inspect and correct positions C and D.
TIPS:
🤝 Please check the product dimensions before ordering, thank you.
🤝 Since the dimensions are measured manually, a slight variation of 1 to 2 mm is It's possible. Thank you for your understanding.
🤝 Due to differences in screens, phone pixels, and lighting, slight color variations may occur. The actual color of the product will prevail over the displayed color.
Service: At [Company Name], your satisfaction is our priority. If you have any questions or suggestions, please don't hesitate to contact us. We are here to listen and will do everything we can to help you.
Features
- BrandREDROAD
- MaterialStainless steel
- Bike storage typeBike stand
- Number of bike(s)1 .
