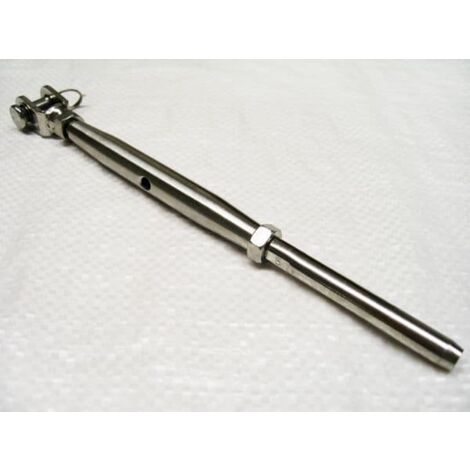

Stainless Steel Rigging Screw Jaw & Swage Terminal M5 (2.5MM Wire Cable Railing Balustrade)

Name: Stainless Steel Rigging Screw Jaw & Swage Terminal M5 (2.5MM Wire Cable Railing Balustrade)
Brand: SECUREFIX DIRECT
SKU: SFSSTR05
Price: 6.5 GBP
Availability: InStock

Sold by SecureFix Direct

Product information

Description

General description

Stainless Steel Rigging Screw Jaw & Swage Terminal M5 is designed for various applications, including handrail wires and rigging on boats. These rigging screws are made from 316 grade stainless steel, providing excellent rust protection, making them particularly popular in the marine industry.

Technical specifications

Thread Diameter: 5MM

Wire Diameter: 2.5MM

Available Codes and Dimensions:

SFSSTR05: A=6MM, B=5MM, C=5.5MM, D=2.5MM, E=87MM, F=151MM, G=34MM, H=220MM

SFSSTR06: A=8.5MM, B=6MM, C=6MM, D=3MM, E=103MM, F=178MM, G=45MM, H=255MM

SFSSTR06A: A=7.5MM, B=6MM, C=7.5MM, D=4MM, E=104.5MM, F=188MM, G=47MM, H=270MM

SFSSTR08: A=11MM, B=8MM, C=8MM, D=4MM, E=120MM, F=205MM, G=50MM, H=295MM

SFSSTR08A: A=10.5MM, B=8MM, C=9MM, D=5MM, E=118MM, F=197MM, G=52MM, H=290MM

SFSSTR10: A=11.5MM, B=9MM, C=9MM, D=5MM, E=138MM, F=234MM, G=52MM, H=338MM

SFSSTR12: A=14MM, B=12MM, C=12.5MM, D=6MM, E=167MM, F=300MM, G=66MM, H=425MM

SFSSTR14: A=14MM, B=12MM, C=14MM, D=7MM, E=185MM, F=318MM, G=71MM, H=457MM

SFSSTR16: A=17MM, B=16MM, C=16MM, D=8MM, E=190MM, F=370MM, G=80MM, H=530MM

SFSSTR20: A=20MM, B=19MM, C=18MM, D=10MM, E=240MM, F=410MM, G=90MM, H=595MM

Features

Brand
SECUREFIX DIRECT
Material
Stainless steel
Colour
Multicolour
Product finish
Stainless steel
Maximum load
10 kg
