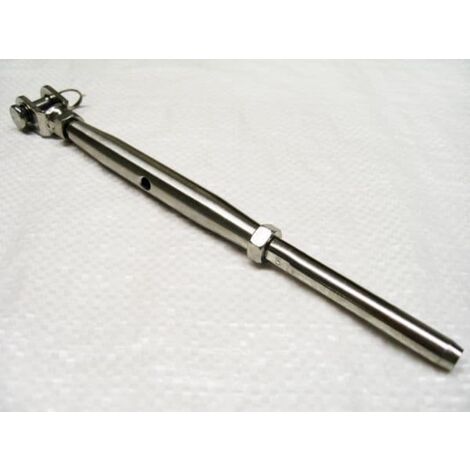

Stainless Steel Rigging Screw Jaw & Swage Terminal M8 (4MM Wire Cable Railing Balustrade)

Name: Stainless Steel Rigging Screw Jaw & Swage Terminal M8 (4MM Wire Cable Railing Balustrade)
Brand: SECUREFIX DIRECT
SKU: SFSSTR08
Price: 7.98 GBP
Availability: InStock

Sold by SecureFix Direct

Product information

Description

General description

Our Stainless Steel Rigging Screw Jaw & Swage Terminal M8 is designed for a variety of applications, including handrail wires and rigging on boats of various sizes. These rigging screws are particularly popular in the marine industry due to their construction from 316 grade stainless steel, which provides excellent rust protection.

Technical specifications

Thread Diameter: 8MM

Wire Diameter: 4MM

Product Codes and Dimensions:

SFSSTR05: A=6MM, B=5MM, C=5.5MM, D=2.5MM, E=87MM, F=151MM, G=34MM, H=220MM

SFSSTR06: A=8.5MM, B=6MM, C=6MM, D=3MM, E=103MM, F=178MM, G=45MM, H=255MM

SFSSTR06A: A=7.5MM, B=6MM, C=7.5MM, D=4MM, E=104.5MM, F=188MM, G=47MM, H=270MM

SFSSTR08: A=11MM, B=8MM, C=8MM, D=4MM, E=120MM, F=205MM, G=50MM, H=295MM

SFSSTR08A: A=10.5MM, B=8MM, C=9MM, D=5MM, E=118MM, F=197MM, G=52MM, H=290MM

SFSSTR10: A=11.5MM, B=9MM, C=9MM, D=5MM, E=138MM, F=234MM, G=52MM, H=338MM

SFSSTR12: A=14MM, B=12MM, C=12.5MM, D=6MM, E=167MM, F=300MM, G=66MM, H=425MM

SFSSTR14: A=14MM, B=12MM, C=14MM, D=7MM, E=185MM, F=318MM, G=71MM, H=457MM

SFSSTR16: A=17MM, B=16MM, C=16MM, D=8MM, E=190MM, F=370MM, G=80MM, H=530MM

SFSSTR20: A=20MM, B=19MM, C=18MM, D=10MM, E=240MM, F=410MM, G=90MM, H=595MM

Other information

Manufactured from 316 grade stainless steel for superior rust protection.

Product Code: SFSSTR08

Features

Brand
SECUREFIX DIRECT
Colour
Multicolour
Warranty
1 year(s)
Pcs per pack
1
Maximum load
338 kg
Product finish
Mirror
Material
Stainless steel
ManoMano Reference
ME27129862
MMID
188303525612
Product code
SFSSTR08
EAN
707152586467
