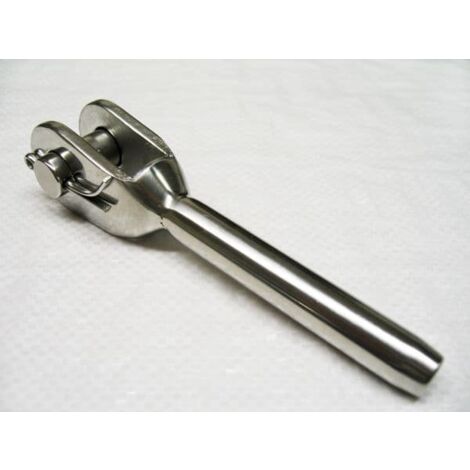

Stainless Steel Swage Fork Terminal 3MM (Jaw Wire Rope Cable Rigging)

Name: Stainless Steel Swage Fork Terminal 3MM (Jaw Wire Rope Cable Rigging)
Brand: SECUREFIX DIRECT
SKU: SFSSTF03
Price: 5 GBP
Availability: InStock

Sold by SecureFix Direct

Product information

Description

General description

Our Stainless Steel Swaged Fork Terminals are designed to terminate wire rope, primarily used in the marine and architectural industries. Manufactured from 316 grade stainless steel, these terminals offer excellent rust resistance and an aesthetically pleasing finish, making them ideal for public spaces. The clevis pin on these terminals can be secured using either a split pin or cotter ring.

Technical specifications

Wire Diameter: 3MM

Metal: 316 Grade Stainless Steel

Product Codes and Dimensions:

Code SFSSTF03: A=9MM, B=3.3MM, C=6MM, D=6MM, E=68MM, F=40MM

Code SFSSTF04: A=11.2MM, B=4.3MM, C=7.6MM, D=7.8MM, E=77.3MM, F=41MM

Code SFSSTF05: A=11.8MM, B=5.3MM, C=9MM, D=8.9MM, E=88MM, F=60MM

Code SFSSTF06: A=13MM, B=6.4MM, C=13MM, D=9MM, E=104MM, F=65MM

Code SFSSTF07: A=15.5MM, B=7.6MM, C=14MM, D=12.5MM, E=117MM, F=72MM

Code SFSSTF08: A=17MM, B=8.3MM, C=16MM, D=16MM, E=146MM, F=87MM

Code SFSSTF10: A=20MM, B=10.6MM, C=18MM, D=19MM, E=149MM, F=91MM

Code SFSSTF12: A=22MM, B=12.5MM, C=20MM, D=19MM, E=195MM, F=107MM

Features

Brand
SECUREFIX DIRECT
Colour
Multicolour
Pcs per pack
1
Material
Stainless steel
Weight
100 g
ManoMano Reference
ME27128278
MMID
386366212906
Product code
SFSSTF03
EAN
600988494787
