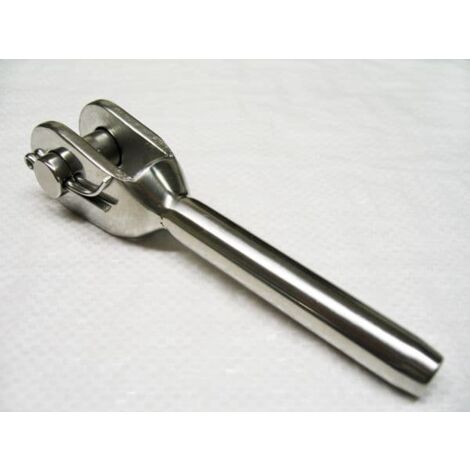

Stainless Steel Swage Fork Terminal 6MM (Jaw Wire Rope Cable Rigging)

Name: Stainless Steel Swage Fork Terminal 6MM (Jaw Wire Rope Cable Rigging)
Brand: SECUREFIX DIRECT
SKU: SFSSTF06
Price: 8.75 GBP
Availability: InStock

Sold by SecureFix Direct

Product information

Description

General description

Our Stainless Steel Swaged Fork Terminals are designed to terminate wire rope, making them ideal for use in the marine and architectural industries. Manufactured from 316 grade stainless steel, these terminals offer excellent rust resistance and an attractive finish suitable for public spaces. The clevis pin can be secured using either a split pin or cotter ring.

Technical specifications

Wire Diameter: 6MM

Metal: 316 Grade Stainless Steel

Product Codes and Dimensions:

Code SFSSTF03: A=9MM, B=3.3MM, C=6MM, D=6MM, E=68MM, F=40MM

Code SFSSTF04: A=11.2MM, B=4.3MM, C=7.6MM, D=7.8MM, E=77.3MM, F=41MM

Code SFSSTF05: A=11.8MM, B=5.3MM, C=9MM, D=8.9MM, E=88MM, F=60MM

Code SFSSTF06: A=13MM, B=6.4MM, C=13MM, D=9MM, E=104MM, F=65MM

Code SFSSTF07: A=15.5MM, B=7.6MM, C=14MM, D=12.5MM, E=117MM, F=72MM

Code SFSSTF08: A=17MM, B=8.3MM, C=16MM, D=16MM, E=146MM, F=87MM

Code SFSSTF10: A=20MM, B=10.6MM, C=18MM, D=19MM, E=149MM, F=91MM

Code SFSSTF12: A=22MM, B=12.5MM, C=20MM, D=19MM, E=195MM, F=107MM

Features

Brand
SECUREFIX DIRECT
Colour
Multicolour
Warranty
1 year(s)
Pcs per pack
1
Maximum load
107 kg
