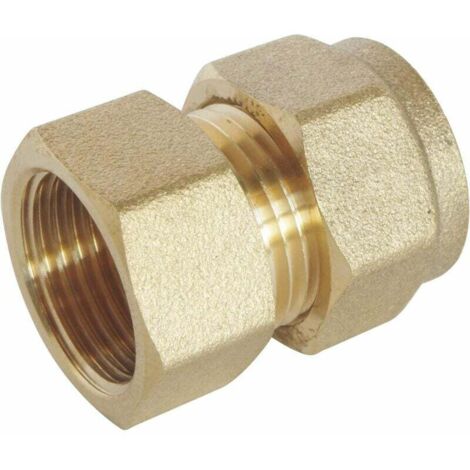

Straight compression fitting (screw-on) for Ø12 pipe - Female 15/21 (1/2'') Allows you to connect a Ø12 diameter pipe by simply screwing it (2 flat wrenches are sufficient)

(£23.77/kg)

~~£14.26~~

Sold by HERSAMA

Product information

Description

General description

Allows you to connect a Ø12 diameter pipe by simply screwing it on. This straight screw fitting is suitable for PER pipe with a female connection of 15/21 (1/2'') and is ideal for sanitary and heating applications.

Technical specifications

Pipe diameter: Ø12 mm

Female connection: 15/21 (1/2'')

Maximum operating pressure: 10 bar

Maximum water pressure: 4 bar (install a pressure reducer above this)

Operating temperature: 5°C to 90°C

Installation

Clean the system pipes before installation.

Ensure the fitting is not subjected to mechanical stress; check the alignment of the pipes.

Adjust the tightening torque to a maximum of 30 Nm to avoid damaging the taps.

Use PTFE or anaerobic sealant to seal the connection at the threaded end; do not use caulk with sealing compound.

Tighten the fitting's retaining nut using pliers or a wrench, but do so moderately.

Ensure fittings remain accessible for maintenance.

Usage

This fitting is designed to work with soft water; provide water treatment in case of hard water.

Follow the rules of the trade, the DTU (German Technical Instruction Manual), and current regulations during installation and use.

Features

Brand
BEIJIYI
Suitable for drinking water
Yes
Connection configuration
Female
Inside diameter
12 mm
Pipe thread size
1/2" (15x21)
Shape
Cylindrical
Fitting shape
20° elbow
Height
4 cm
Seal included
Yes
Fitting material
Brass
Coupling type
Fitting
Fitting usage
For taps
ManoMano Reference
ME84752464
MMID
265968791720
Product code
FRYU-3430
EAN
9324622244200
