Straight Trailer Hitch Eye 16" Mild Steel (24 Ton Weld On Towing Ring)

Name: Straight Trailer Hitch Eye 16" Mild Steel (24 Ton Weld On Towing Ring)
Brand: SECUREFIX DIRECT
SKU: SFAG0100C
Price: 23.9 GBP
Availability: InStock

Buying for your business?

Negotiated prices excl. VAT up to -20%

Create a pro account

Sold by SecureFix Direct

Product information

Description

General description

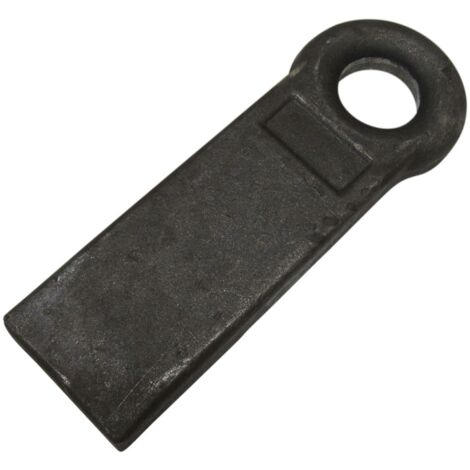

Our Straight Trailer Hitch Eye is designed for robust towing applications, made from mild steel and intended to be welded onto trailers. It features an eye as the attachment point for secure towing.

Technical specifications

Material: Mild Steel

Product Codes and Dimensions:

SFAG0100A: A=128 mm, B=31.5 mm, C=91.5 mm, D=110 mm, E=50.5 mm, Max Breaking Load=24 Ton

SFAG0100B: A=305 mm, B=30 mm, C=88 mm, D=110.5 mm, E=50.5 mm, Max Breaking Load=24 Ton

SFAG0100C: A=405 mm, B=30.5 mm, C=93 mm, D=113 mm, E=51 mm, Max Breaking Load=24 Ton

SFAG0100D: A=460 mm, B=31.5 mm, C=91 mm, D=110.5 mm, E=50 mm, Max Breaking Load=24 Ton

SFAG0101A: A=307 mm, B=30.5 mm, C=91 mm, D=112 mm, E=51 mm, Max Breaking Load=35 Ton

SFAG0101B: A=407 mm, B=31.5 mm, C=91 mm, D=112.5 mm, E=50.5 mm, Max Breaking Load=35 Ton

SFAG0104: A=308 mm, B=41 mm, C=93.5 mm, D=113 mm, E=50.5 mm, Max Breaking Load=112 Ton

SFAG0104A: A=304 mm, B=42.5 mm, C=91 mm, D=113 mm, E=51 mm, Max Breaking Load=82 Ton

Installation

Always ensure that welding is carried out by a qualified person. General rules include preheating the area, avoiding tack welding, and not using short thin runs.

Usage

This trailer hitch eye is suitable for various towing applications and can accommodate towing eye bushes that allow a pin to be used instead of a tow ball.

Other information

Shotblasted and finished in self-colour.

We supply a variety of trailer hitch eyes and a wide range of agricultural products.

Features

Brand
SECUREFIX DIRECT
Pcs per pack
1
Colour
Multicolour
Length
30.5 cm
Weight
100 g
ManoMano Reference
ME27139388
MMID
739268760643
Product code
SFAG0100C
EAN
600988488939
