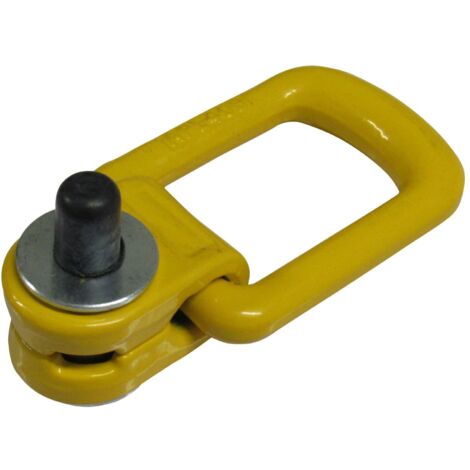

Swivel Lifting Rings Bolt On M8 (Grade 80 Lift Attachment Point Eyebolt Elongated)

Product out of stock

Product information

Description

General description

Swivel Lifting Rings Bolt On M8 are Grade 80 lift attachment points designed for hoisting and lifting equipment when there are no obvious attachment points. These versatile lifting points can be securely bolted to the object being lifted and removed when no longer needed. They are made from Grade 80 material, ensuring strength and durability.

Technical specifications

Material: Grade 80

Finish: Yellow (may vary)

Factor of Safety: 4:1

Conforms to: BS EN 1677

Safe Working Load (SWL): 0.3 Ton

Dimensions:

A: 100 mm

B: 35 mm

C: 34 mm

D: 7.82 mm

E: 11 mm

F: 10 mm

G: 85 mm

H: 51 mm

Usage

These lifting attachment points are commonly used in the lifting industry for various hoisting applications, providing complete 360-degree rotation and a pivot of up to 180 degrees.

Other information

Test Certificates can be supplied by email upon request.

Features

Brand
SECUREFIX DIRECT
Length
10 cm
Width
3.5 cm
Material
Two-material
Colour
Multicolour
