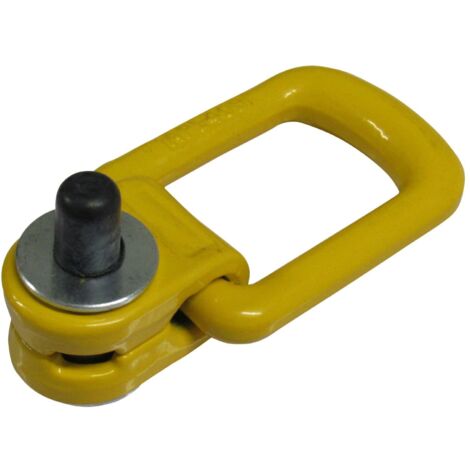

Swivel Lifting Rings Bolt On M12 (Grade 80 Lift Attachment Point Eyebolt Elongated)

Name: Swivel Lifting Rings Bolt On M12 (Grade 80 Lift Attachment Point Eyebolt Elongated)
Brand: SECUREFIX DIRECT
SKU: SFSEBLRT12
Price: 29 GBP
Availability: InStock

Buying for your business?

Negotiated prices excl. VAT up to -20%

Create a pro account

Sold by SecureFix Direct

Product information

Description

General description

Swivel Lifting Rings Bolt On M12 are Grade 80 lift attachment points designed for hoisting and lifting equipment when there are no obvious attachment points. These lifting points feature a bolt-on design, allowing them to be securely attached to the object being lifted and easily removed when no longer needed. Made from Grade 80 material, they provide strength and durability.

Technical specifications

Material: Grade 80

Finish: Yellow (may vary)

Factor of Safety: 4:1

Safe Working Load (SWL): 1 Ton

Dimensions:

A: 123 mm

B: 35 mm

C: 39 mm

D: 11.82 mm

E: 15 mm

F: 14 mm

G: 99 mm

H: 64 mm

Usage

These Swivel Lifting Attachment Points are commonly used in the lifting industry for various hoisting applications, providing complete 360-degree rotation and a pivot of up to 180 degrees.

Other information

These lifting points conform to current safety standards, and test certificates can be supplied by email.

Features

Brand
SECUREFIX DIRECT
Colour
Multicolour
Pcs per pack
1
Maximum load
80 kg
Width
3.5 cm
Material
Two-material
Mounting method
To screw
Weight
100 g
ManoMano Reference
ME87840172
MMID
449425333492
Product code
SFSEBLRT12
EAN
0600988554986
