General description

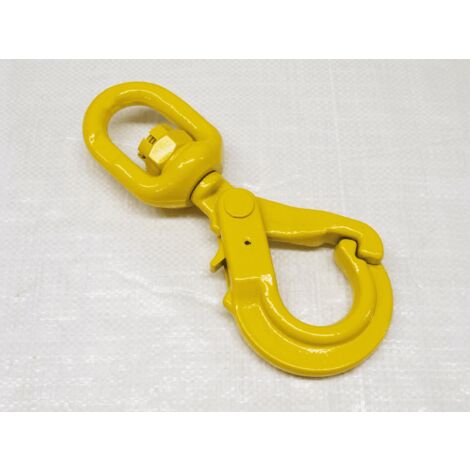

This Swivel Self Locking Hook is a high-quality lifting component designed for use in the lifting gear industry, particularly for chain slings. Made from Grade 80 material, it features a self-locking mechanism that enhances safety during lifting operations. The swivel design allows for flexibility, making it an excellent choice for various lifting applications.Technical specifications
- Chain Size: 16MM
- Material: Grade 80 (G80)
- Finish: Yellow (may vary)
- Factor of Safety: 4:1
- Conforms to: BS EN 1677
| Product Code | SWL (Tonne) | A (MM) | B (MM) | C (MM) | D (MM) | E (MM) | F (MM) | G (MM) | H (MM) |
|---|---|---|---|---|---|---|---|---|---|
| SFYASSAH07 | 2 | 175 | 24 | 17.5 | 34 | 210 | 13 | 24 | 34 |
| SFYASSAH10 | 3.15 | 210 | 29 | 22 | 46 | 250 | 16 | 35 | 41 |
| SFYASSAH13 | 5.3 | 245 | 32.5 | 28 | 58 | 290 | 17 | 38 | 49.5 |
| SFYASSAH16 | 8 | 310 | 40 | 33 | 61.5 | 370 | 22 | 52 | 69 |
| SFYASSAH20 | 12.5 | 355 | 62 | 49 | 87 | 440 | 27.5 | 59 | 70 |
