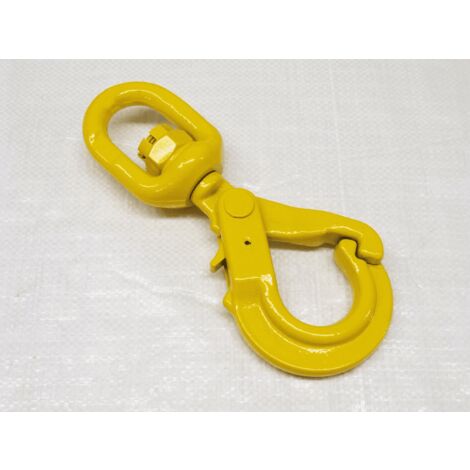

Swivel Self Locking Hook Grade 80 10MM (G80 3.15T Autolock Chain Lifting Component)

Name: Swivel Self Locking Hook Grade 80 10MM (G80 3.15T Autolock Chain Lifting Component)
Brand: SECUREFIX DIRECT
SKU: SFYASSAH10
Price: 25.95 GBP
Availability: InStock

Sold by SecureFix Direct

Product information

Description

General description

Swivel Self Locking Hook Grade 80 10MM is a high-quality lifting component designed for use in the lifting gear industry, particularly for chain slings. This hook features a self-locking mechanism that enhances safety by ensuring the latch closes automatically under load, preventing accidental release. The swivel component adds flexibility, making it easier to maneuver during lifting operations.

Technical specifications

Material: Grade 80 (G80)

Chain Size: 10MM

Finish: Yellow (may vary)

Factor of Safety: 4:1

Conforms to: BS EN 1677

Product Codes and Specifications:

SFYASSAH07: SWL 2T, A 175MM, B 24MM, C 17.5MM, D 34MM, E 210MM, F 13MM, G 24MM, H 34MM

SFYASSAH10: SWL 3.15T, A 210MM, B 29MM, C 22MM, D 46MM, E 250MM, F 16MM, G 35MM, H 41MM

SFYASSAH13: SWL 5.3T, A 245MM, B 32.5MM, C 28MM, D 58MM, E 290MM, F 17MM, G 38MM, H 49.5MM

SFYASSAH16: SWL 8T, A 310MM, B 40MM, C 33MM, D 61.5MM, E 370MM, F 22MM, G 52MM, H 69MM

SFYASSAH20: SWL 12.5T, A 355MM, B 62MM, C 49MM, D 87MM, E 440MM, F 27.5MM, G 59MM, H 70MM

Other information

Test certificate will be supplied via email

Free delivery available

Features

Brand
SECUREFIX DIRECT
Length
21 cm
Width
1 cm
Weight
100 g
Material
Two-material
