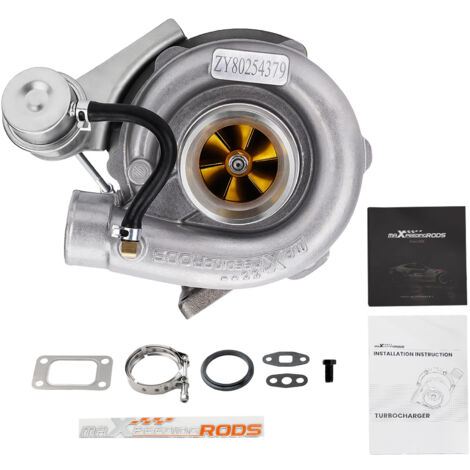

T3 T04E Street Billet Turbo Turbocharger 57 A.R Turbine Universal for 1.5-2.5L

£20Offered

To be applied on the payment page

Offer valid today only.

Sold by maXpeedingrods GB

Product information

Description

General description

This T3 T04E Street Billet Turbo Turbocharger is designed for universal application on 1.5L to 2.5L 4 or 6 cylinder engines. It features a matte finish and is 100% brand new, ensuring high performance and reliability.

Technical specifications

Turbine Intake Flange: T3 T4 4 bolt flange patterns

Turbine Exhaust Flange: Standard T3 5 bolt flange pattern

Wastegate: Without wastegate

Compressor Trim: 48.1

Compressor A/R: 0.5

Compressor Inducer: 52.7mm

Compressor Exducer: 76mm

Turbine Trim: 74.2

Turbine A/R: 0.57

Turbine Inducer: 64.8mm

Turbine Exducer: 55.8mm

Turbine exhaust inlet: 45mm/87mm

Compressor outlet: 42mm (inside diameter), 52mm (outer diameter)

Compressor inlet: 68mm (inside diameter), 77mm (outer diameter)

Oil Inlet: M12*1.25

Oil Outlet: 2*M8*1.25

Cooling Type: Oil cooled

Bearing Type: Floating bearing/Journal bearing

Thrust Bearing: 270 degree

Horsepower: Up to 400+HP

Package Size: 26x24x23 cm

Package Weight: 7250g

Installation

Replace, repair, or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.

Ensure the oil drain line is lower than the turbo itself.

Exhaust outlets should be well sealed by welding.

Professional installation is highly recommended.

Analyze and eliminate the cause of the previous turbo failure before installing the new turbocharger (e.g., insufficient oil supply, foreign bodies in the intake area, crankcase ventilation issues).

Usage

This turbocharger is not vehicle specific; please check specifications and verify compatibility prior to placing your order.
