Description
Dimensions and technical details

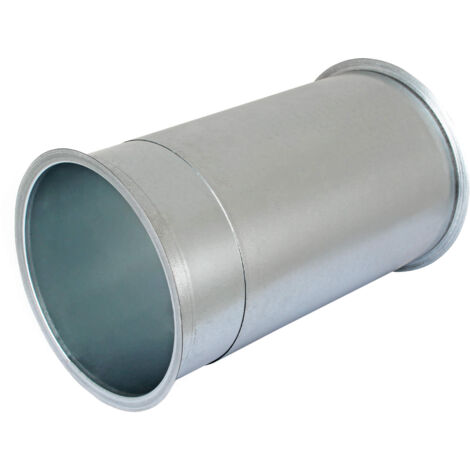

- Adjustable wall duct for axial-flow wall fans
- Various size options available
- Material: galvanised steel sheet, circular 10 mm brim on both ends
- Size adjustable between 250 - 450 mm
- Application: in walls with up to 470 mm thickness, duct can be shortened on-site for walls with less than 250 mm
- May only be combined with EX-rated wall fans if both ends have been grounded according to VDE guidelines!

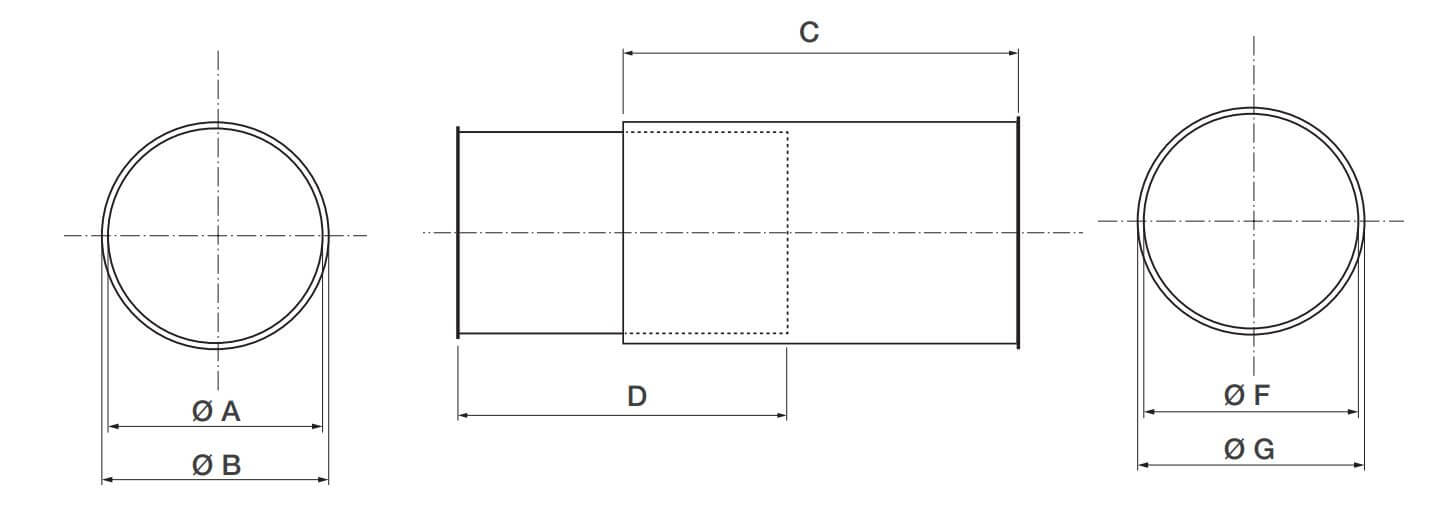

| Model | Drill hole (mm) | Inside | C (mm) | D (mm) | Outside | Weight (kg) | ||
|---|---|---|---|---|---|---|---|---|
| Ø A (mm) | Ø B (mm) | Ø F (mm) | Ø G (mm) | |||||
| TWRH 170 | 183 | 170 | 190 | 250 | 230 | 173 | 193 | 1.4 |
| TWRH 220 | 233 | 220 | 240 | 250 | 230 | 223 | 243 | 1.8 |
| TWRH 270 | 283 | 270 | 290 | 250 | 230 | 273 | 293 | 2.2 |
| TWRH 330 | 343 | 330 | 350 | 250 | 230 | 333 | 353 | 2.7 |
| TWRH 375 | 388 | 375 | 395 | 250 | 230 | 378 | 398 | 3 |
| TWRH 440 | 453 | 440 | 460 | 250 | 230 | 443 | 463 | 3.8 |
| TWRH 470 | 483 | 470 | 490 | 250 | 230 | 473 | 493 | 3.9 |
| TWRH 525 | 538 | 525 | 545 | 250 | 230 | 528 | 548 | 4.3 |
| TWRH 620 | 633 | 620 | 640 | 250 | 230 | 625 | 645 | 5 |
| TWRH 645 | 658 | 645 | 665 | 250 | 230 | 650 | 670 | 5.3 |
| Model | Compatible with |
|---|---|
| TWRH 170 | M 150 - MF 150 - Novus LHV 160 |
| TWRH 220 | EQ 20 - Novus LHV 160 |
| TWRH 270 | E 25 - E-Ex 25 - EQ 25 - EQ 25 Ex - EQ 25 Eco - EQ MD 25 - EQ HD 25 - MP 25 |
| TWRH 330 | E 30 - E-Ex 30 - EQ 30 - EQ 30 Ex - EQ 30 Eco - EQ MD 30 - EQ HD 30 - MP 30 |
| TWRH 375 | E 35 - E-Ex 35 - EQ 35 - EQ Ex 35 - EQ 35 Eco - EQ MD 35 - EQ HD 35 - MP 35 |
| TWRH 440 | E 40 - E-Ex 40 - EQ 40 - EQ Ex 40 - EQ 40 Eco - EQ MD 40 - EQ HD 40 - MP 40 - Novus LHV 400 |
| TWRH 470 | E 45 - E-Ex 45 - MP 45 |
| TWRH 525 | E 50 - E-Ex 50 - EQ 50 - EQ Ex 50 - EQ 50 Eco - EQ MD 50 - EQ HD 50 - MP 50 |
| TWRH 620 | E 60 - E-Ex 60 - MP 60 |
| TWRH 645 | EQ 60 - EQ Ex 60 - EQ 60 Eco - EQ MD 60 - EQ HD 60 |
Features
- BrandCASAFAN
- Length25 cm
- Width25 cm
- MaterialSteel
- ColourGrey
