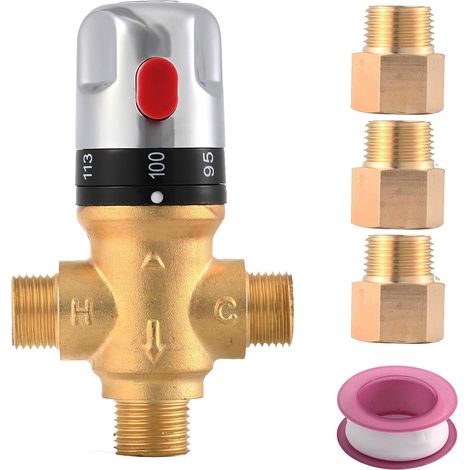

Thermostatic mixing valve, shower water mixing valve, with 1/2"G to 1/2" NPT connection adapters, water temperature control valve, gold

~~£70.18~~

Of which environmental contribution £0.10 including VAT.

Sold by Cuizi

Product information

Description

Function: The thermostatic mixing valve is designed to adjust the flow between hot and cold water to maintain the most comfortable temperature for everyday use.
SPECIFICATIONS: US Standard Fittings. Supplied with 3 Pcs G1/2 British Straight Thread to 1/2 NPT Adapters.
TEMPERATURE: MARKS in FAHRENHEIT. Inlet Water Supply Temperature: Cold Water from 39°F to 84°F; Hot Water from 122°F to 203°F; Outlet Water Temperature Range: 68°F to 122°F F
MATERIALS: Lead-free brass
TIP: If you need a temperature above 100°F, simply press the red button while turning the valve.

Material: Brass main body
Working pressure: 0.05 MPa-1 MPa
Ideal pressure: 0.1 MPa-0.5 MPa. Installation pressure relief valve when the ideal pressure is exceeded.
Standard pressure: Dynamic pressure 0.3 ± 0.02 MPa
Water pressure test: 1.6 MPa
Air pressure test: 0.6 MPa
Cold water supply temperature: 39°F - 84°F
Hot water supply temperature: 122°F - 203°F
Water temperature range: 68°F - 122°F F
Safety temperature: If the cold water supply fails, the flow rate will be reduced to almost nothing, preventing the risk of scalding.
Temperature accuracy: Maintained constant ±2°F for adjustment.
Package includes: 1x thermostatic mixing valve, 3x G1/2 to 1/2 NPT adapters, 1x Teflon tape.

Features

Brand
YS-YALOTRS
Colour
Yellow
Material
Brass
Intended use of the tap
Shower
Availability of spare parts
0.000912 year(s)
Pipe thread size
1/2" (15x21)
Shape
Cylindrical
Height
35 cm
Tap activation mechanism
Mechanical
Thermostatic mixer
Yes
Number of handle(s)
1
Number of outlets
1
Number of jets
1
Weight
2 kg
Depth
15 cm
Pcs per pack
1
Wall-mounted tap
Yes
38°C Safety
Yes
Tap head only
Yes
Type of installation method
For mounting
Tap type
Single-lever mixer
ManoMano Reference
ME98176185
MMID
746521969873
Product code
BT-UK2025YS-1928
EAN
756594480246
