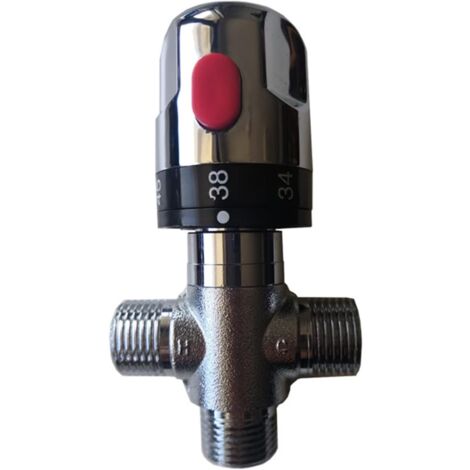

Thermostatic valve solar water heater thermostatic valve DN15-1pcs-chrome plating

Thermostatic valve thermostatic faucet thermostatic coil solar water heater thermostatic valve DN15

Product introduction:
Thermostatic mixing valve is a supporting product specially developed for the hot water system, and is widely used in electric water heaters, solar water heaters and central hot water supply systems. It can also be used in electric water heaters and solar water heaters. Users can adjust the temperature of hot and cold mixed water according to their needs. The required temperature can be quickly reached and stabilized to ensure a constant outlet water temperature, and it is not affected by changes in water temperature, flow rate and pressure. Influence, to solve the problem of hot and cold water temperature in the bath, when the cold water is interrupted, the mixing valve can automatically cut off the hot water in a few seconds, which plays a safety protection role.

working principle:
At At the mixing outlet of the thermostatic water mixing valve, a heat-sensitive element is installed, and the characteristics of the temperature-sensitive element are used to push the coil in the valve body to move to block or open the inlet of hot and cold water. Turn on the hot water while blocking the cold water. When the temperature adjustment knob sets a certain temperature, no matter how the temperature and pressure of the cold and hot water inlets change, the proportion of cold and hot water entering the water outlet will also change accordingly, so that the outlet water temperature is always kept constant, the temperature adjustment knob can be arbitrarily adjusted within the specified temperature range of the product, and the thermostatic mixing valve will automatically maintain the outlet water temperature.

·Features
1. Working pressure: 0.05 MPa-1 MPa.
2. Ideal pressure: 0.1 MPa-0.5 MPa, if it exceeds 0.5 MPa, a pressure reducing valve must be installed.
3. Standard pressure: dynamic pressure 0.3 ± 0.02 MPa.
4. Cold water supply temperature: 4-29°C, hot water supply temperature: 55-85°C, the recommended normal use temperature is 60-70°C.
5. Constant temperature outlet water temperature range: 20-50℃.
6. Set the safety button temperature: 38°C.
7. Safe and anti-scald: When the cold water supply is accidentally lost, the flow of mixed water will decrease rapidly until it is closed.
8. Accurate temperature: First set the required temperature, and the temperature you need can be reached within 5 seconds after the water is discharged, and the temperature fluctuation of the discharged water is within ±1°C.
9. The outlet water temperature is stable: When the inlet water temperature remains unchanged, the cold and hot water pressure fluctuates by 50%, and the outlet water temperature fluctuates within ±2°C; when the inlet water pressure remains unchanged, the hot water supply temperature increases from 60°C to 75°C (5°C/min), the outlet water temperature fluctuates within ±2°C.
