Tile cutter SIGMA 4dn cm 95 push engraving + mat for mosaic 64b2

Name: Tile cutter SIGMA 4dn cm 95 push engraving + mat for mosaic 64b2
Brand: SIGMA
SKU: 9509442384958
Price: 633.47 GBP
Availability: InStock

Sold by GLS72

Product information

Description

General description

Push engraving tile cutter SIGMA 4DN 95 cm is designed for easy and deep engraving with minimal effort, making it ideal for rough, thick, and large tiles. The ergonomic handle is specifically designed for push engraving, ensuring comfort during use.

Technical specifications

Useful cutting length: 95 cm

Diagonal cut: 67.2 cm

Maximum cutting thickness: 19 mm

Handle breaking power: 1200 kg

Net weight: 14.8 kg

Engraving wheel diameter: 16 mm

Compatibility and accessories

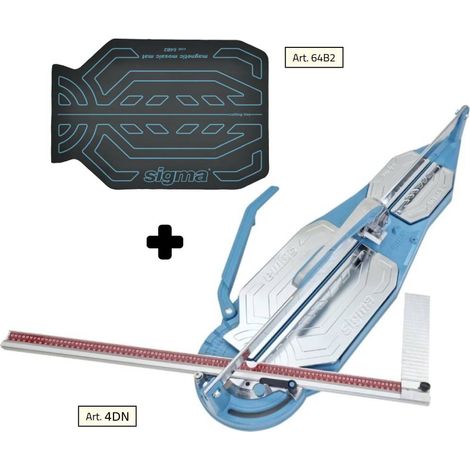

Includes 1 x SIGMA 4DN tile cutter 95 cm

Includes 1 x magnetic mat for mosaic 64B2 (337x486 mm), non-slip and universal, compatible with the entire "Series 4"

Installation

Automatic system keeps the handle raised for easy tile insertion

Automatic steel compensator adjusts the sliding preload of the carriage on the guide

Usage

Engraving wheel rotates on a roller bearing, guided by an anti-friction metal shell to avoid friction and lateral wear

Sliding carriage operates wear-free with 3 double ball bearings for precision

Front protective rubber absorbs impact during engraving to protect the base column

For splitting, lift the handle to allow automatic rotation of the foot

Features

Brand
SIGMA
Cutting length
95 cm
Power source
Manual
Disc / blade diameter
16 mm
Height
950 mm
Suitable for
Tiling
Handle material type
Aluminium
Material
Aluminium
ManoMano Reference
ME86315776
MMID
993292597473
Product code
9509442384958
EAN
9509442384958
