TILE CUTTER SIGMA 8AE2 KERA-CUT EXT CM 332 + 38F11D KERA-FLEX EXT + WATERKIT

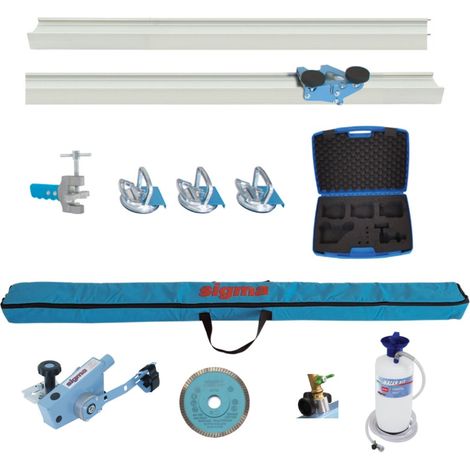

The kit includes:

1x Sigma 8AE2
1x Sigma 38F11D
1x Sgma 75B
1x Sigma 87E4
1x Sigma 458

Tile cutter complete extensible version Sigma KERA-CUT EXT 8AE2 cm. 332

KERA-CUT EXT: cutting equipment for large format tiles; the divisible aluminum guide, fixed on the tile by suction cups (anti-stain, freely positioned,
also suitable for rough surfaces), allows at the carriage to slide with an scooring wheel. Sliding carriage with coated wheels, with double ball bearings
on hardened tracks. The push with two-handed lever allows a very deep incision. The guide in the lower part are covered with non-slip and stain-free rubber.
Extendable versions with three high precision steel connection joints. Then the separation is carried out with the supplied nipper (max 7 mm).
For transport, the guides and all the accessories are contained in the two suitcases supplied.
As an alternative, to cut thicker materials a angle-grinder holder carriage is available which allows sawing with a diamond blade.

Technical data:
Cutting length: 332 cm
Diagonal cut: 234x234 cm
Maximum cutting thickness: 7 mm
Net weight: 14.2 Kg

SIGMA 38F11D: KERA-FLEX EXT unit with disc 75B ready for standard angle grinder, spindle thread M14

Slinding on the carriage guide of the Kera-Cut, "KERA-FLEX" allows sawn cutting of tiles up to a thickness of 25 mm both dry and wet.

The trolley unit runs on 3 wear-resistant coated wheels and extremely durable double ball bearings.
Easy adjustment of cutting depth, prepared for dust extraction and water cutting with "Waterkit".
It is possible to connect any angle grinder up to 1400W thanks to its universal M14 connection and use a disc up to 125 mm diameter.
CONVENIENT FOR THICK SLABS
KERA-FLEX uses the KERA-CUT guide for sawn cuts of ceramic materials with a thickness of up to 25 mm. Simply remove the KERA-CUT scoring cart and insert the KERA-FLEX!
CUTTING DEPTH STOP
Thanks to the depth stop, you won't run the risk of cutting into the workbench, and you can work with confidence.
UNIVERSAL ATTACHMENT FOR GRINDERS
Kera-Flex is prepared for any grinder with an M14 connection.
WITH OR WITHOUT WATER?
Specially designed to work both ways! Prepared for dust extraction for dry work.Thanks to the "WATERKIT" it is possible to work with an adjustable water jet for maximum finishing and to limit tool usury.

Complete with Sigma 75B: Diamond disc Sigma Ø115 mm, bore 22,2 mm, thick 1,3 mm for materials from 5 to 25 mm.

WATER KIT COOLING SYSTEM FOR DIAMOND DISC COMBIFLEX 10 L SIGMA 87E4

Waterkit cooling system for the diamond tool with water spray (10 liters), guarantees better speed and finish.
Also compatible for previous versions.
