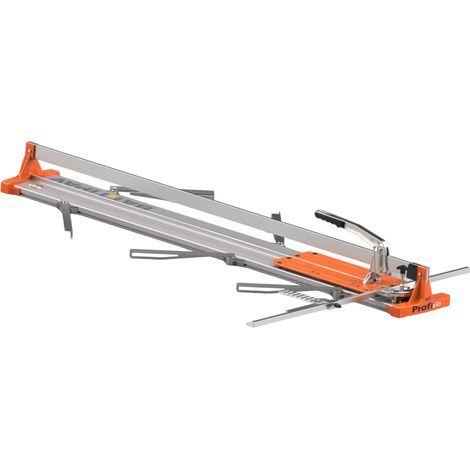

Manual tile cutter push engraving 163 cm Battipav profi evo 163

Name: Manual tile cutter push engraving 163 cm Battipav profi evo 163
Brand: BATTIPAV
SKU: 8021410065160
Price: 563.52 GBP
Availability: InStock
Rating: 3 (1 reviews)

Sold by GLS72

Product information

Description

General description

PROFI EVO 163 by Battipav is a professional tile cutter designed for push engraving, enabling both straight and diagonal cuts on ceramic, single-fired tiles, and stoneware. Its aluminum base is shaped for maximum rigidity while remaining lightweight, and it features shock-absorbent shelves with four springs on each side, along with a stainless steel tile separator for rapid separation and excellent finishing results.

Technical specifications

Max cutting length: 1630 mm

Max tile format for diagonal cutting: 1150 x 1150 mm

Cutting thickness: 5 - 15 mm

Cutting method: push engraving

Engraving wheel diameter: 15 mm

Side extensions: 6

Packaging dimensions: 1996 x 295 x 280 mm

Gross weight: 23.3 kg

Net weight: 20.5 kg

Compatibility and accessories

Extra engraving wheel kit included

Installation

Monobloc protractor ruler with direct measurement reading for straight and diagonal cuts

Diagonal cutting adjustable from -45° to 0 to +45°

Locking device for easy reference to “0” for practical straight cuts

Usage

Aluminum carriage with two adjustable ball bearings for smooth operation and maximum precision

Quick Start System with springs for immediate readiness for cutting

Breaker foot made of aluminum with anti-scratch rubber and magnet for stability

New design side supports for enhanced stability when cutting large formats

Long extension for comfortable and safe cutting

Features

Brand
BATTIPAV
Cutting length
163 cm
Power source
Manual
Tilt angle
45 °
Disc / blade diameter
15 mm
