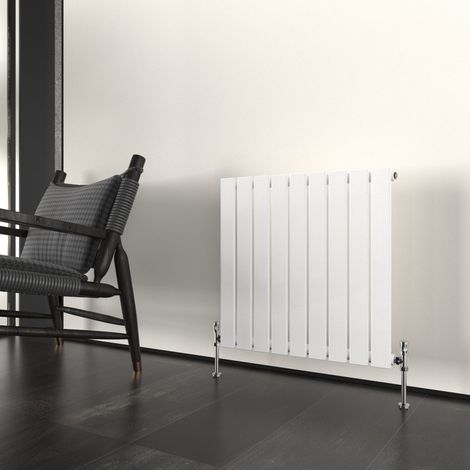

T&KHorizontal White Single Radiator Flat Panel Designer 600x612mm Modern Central Heating Rads

About the Details:

• Made from 1.5mm thickness premium mild steel.
• Equipped with anti-rust and anti-corrosion coating.
• Tested to BS & EN442.
• 1/2" inlets and outlets.
• Suitable for all UK central heating systems.
• Color: Anthracite/White
• Wall mount or floor installation.
• Package include: radiator,brackets, fixing screws, plug, air vent.
• Valves are not included.



Specification

Type	Model	Size(H X W)	Panel	Bars	BTU Rating	Pipe Center
Flat Panel	Horizontal	600x408mm	Single	6	1328	488mm
Flat Panel	Horizontal	600x408mm	Double	6+6	2036	488mm
Flat Panel	Horizontal	600x612mm	Single	9	1982	692mm
Flat Panel	Horizontal	600x612mm	Double	9+9	3044	692mm
Flat Panel	Horizontal	600x748mm	Single	11	2418	828mm
Flat Panel	Horizontal	600x748mm	Double	11+11	3716	828mm
Flat Panel	Horizontal	600x884mm	Single	13	2854	964mm
Flat Panel	Horizontal	600x884mm	Double	13+13	4388	964mm
Flat Panel	Horizontal	600x1020mm	Single	15	3290	1100mm
Flat Panel	Horizontal	600x1020mm	Double	15+15	5060	1100mm
Flat Panel	Horizontal	600x1156mm	Single	17	3726	1236mm
Flat Panel	Horizontal	600x1156mm	Double	17+17	5732	1236mm
Flat Panel	Horizontal	600x1428mm	Single	21	4598	1508mm
Flat Panel	Horizontal	600x1428mm	Double	21+21	7076	1508mm
Flat Panel	Vertical	1600x272mm	Single	4	2044	352mm
Flat Panel	Vertical	1600x272mm	Double	4+4	3668	352mm
Flat Panel	Vertical	1600x408mm	Single	6	3056	488mm
Flat Panel	Vertical	1600x408mm	Double	6+6	5492	488mm
Flat Panel	Vertical	1600x544mm	Single	8	4068	624mm
Flat Panel	Vertical	1600x544mm	Double	8+8	7316	624mm
Flat Panel	Vertical	1800x272mm	Single	4	2196	352mm
Flat Panel	Vertical	1800x272mm	Double	4+4	3972	352mm
Flat Panel	Vertical	1800x408mm	Single	6	3284	488mm
Flat Panel	Vertical	1800x408mm	Double	6+6	5948	488mm
Flat Panel	Vertical	1800x544mm	Single	8	4372	624mm
Flat Panel	Vertical	1800x544mm	Double	8+8	7924	624mm
