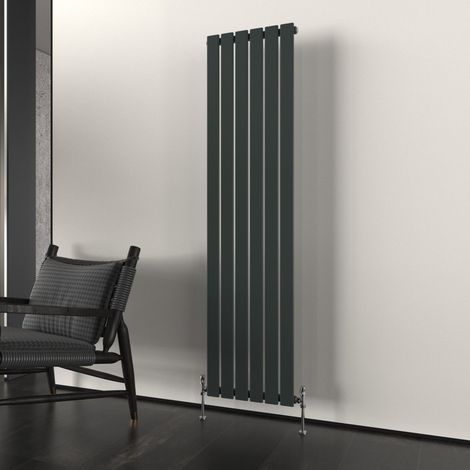

T&K Vertical Anthracite Single Radiator Flat Panel Designer 1600x408mm Modern Central Heating Rads
(£5.18/kg)
Colour: Anthracite
Installation direction:
Sold by TopointDIY
You may also like
Compare with similar items
Product information
Description
About the Details:
- Made from 1.5mm thickness premium mild steel.
- Equipped with anti-rust and anti-corrosion coating.
- Tested to BS & EN442.
- 1/2" inlets and outlets.
- Suitable for all UK central heating systems.
- Color: Anthracite/White
- Wall mount or floor installation.
- Package include: radiator,brackets, fixing screws, plug, air vent.
- Valves are not included.
Specification
| Type | Model | Size(H X W) | Panel | Bars | BTU Rating | Pipe Center |
|---|---|---|---|---|---|---|
| Flat Panel | Horizontal | 600x408mm | Single | 6 | 1328 | 488mm |
| Flat Panel | Horizontal | 600x408mm | Double | 6+6 | 2036 | 488mm |
| Flat Panel | Horizontal | 600x612mm | Single | 9 | 1982 | 692mm |
| Flat Panel | Horizontal | 600x612mm | Double | 9+9 | 3044 | 692mm |
| Flat Panel | Horizontal | 600x748mm | Single | 11 | 2418 | 828mm |
| Flat Panel | Horizontal | 600x748mm | Double | 11+11 | 3716 | 828mm |
| Flat Panel | Horizontal | 600x884mm | Single | 13 | 2854 | 964mm |
| Flat Panel | Horizontal | 600x884mm | Double | 13+13 | 4388 | 964mm |
| Flat Panel | Horizontal | 600x1020mm | Single | 15 | 3290 | 1100mm |
| Flat Panel | Horizontal | 600x1020mm | Double | 15+15 | 5060 | 1100mm |
| Flat Panel | Horizontal | 600x1156mm | Single | 17 | 3726 | 1236mm |
| Flat Panel | Horizontal | 600x1156mm | Double | 17+17 | 5732 | 1236mm |
| Flat Panel | Horizontal | 600x1428mm | Single | 21 | 4598 | 1508mm |
| Flat Panel | Horizontal | 600x1428mm | Double | 21+21 | 7076 | 1508mm |
| Flat Panel | Vertical | 1600x272mm | Single | 4 | 2044 | 352mm |
| Flat Panel | Vertical | 1600x272mm | Double | 4+4 | 3668 | 352mm |
| Flat Panel | Vertical | 1600x408mm | Single | 6 | 3056 | 488mm |
| Flat Panel | Vertical | 1600x408mm | Double | 6+6 | 5492 | 488mm |
| Flat Panel | Vertical | 1600x544mm | Single | 8 | 4068 | 624mm |
| Flat Panel | Vertical | 1600x544mm | Double | 8+8 | 7316 | 624mm |
| Flat Panel | Vertical | 1800x272mm | Single | 4 | 2196 | 352mm |
| Flat Panel | Vertical | 1800x272mm | Double | 4+4 | 3972 | 352mm |
| Flat Panel | Vertical | 1800x408mm | Single | 6 | 3284 | 488mm |
| Flat Panel | Vertical | 1800x408mm | Double | 6+6 | 5948 | 488mm |
| Flat Panel | Vertical | 1800x544mm | Single | 8 | 4372 | 624mm |
| Flat Panel | Vertical | 1800x544mm | Double | 8+8 | 7924 | 624mm |
Features
- BrandT&K
- Length4.6 cm
- Width40.8 cm
- Height160 cm
- Weight19.9 kg
