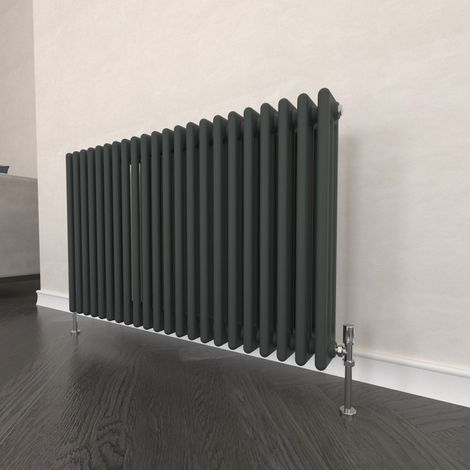

T&K Horizontal Radiator Traditional 3 Column Designer 600x1010mm Anthracite Modern Cast Iron Style Central Heating Rads

About the Details:

• Made from 1.5mm thickness premium mild steel.
• Equipped with anti-rust and anti-corrosion coating.
• Tested to BS & EN442.
• 1/2" inlets and outlets.
• Suitable for all UK central heating systems.
• Color: Anthracite/White
• Wall mount or floor installation.
• Package include: radiator,brackets, fixing screws, plug, air vent.
• Valves are not included.



Specification

Type	Model	Size(H X W)	Panel	Bars	BTU Rating	Pipe Center
Traditional Style	Horizontal	600x425mm	2 Column	9	1889	508mm
Traditional Style	Horizontal	600x605mm	2 Column	13	2728	688mm
Traditional Style	Horizontal	600x830mm	2 Column	18	3760	910mm
Traditional Style	Horizontal	600x1010mm	2 Column	22	4600	1090mm
Traditional Style	Horizontal	600x1190mm	2 Column	26	5425	1270mm
Traditional Style	Horizontal	600x1460mm	2 Column	32	6678	1540mm
Traditional Style	Horizontal	600x605mm	3 Column	13	3868	685mm
Traditional Style	Horizontal	600x830mm	3 Column	18	5353	910mm
Traditional Style	Horizontal	600x1010mm	3 Column	22	6548	1090mm
Traditional Style	Horizontal	600x1190mm	3 Column	26	7730	1270mm
Traditional Style	Vertical	1800x290mm	2 Column	6	3770	370mm
Traditional Style	Vertical	1800x380mm	2 Column	8	5010	460mm
Traditional Style	Vertical	1800x470mm	2 Column	10	6260	550mm
Traditional Style	Vertical	1800x380mm	3 Column	8	6852	460mm
Traditional Style	Vertical	1800x470mm	3 Column	10	8564	550mm
