General description

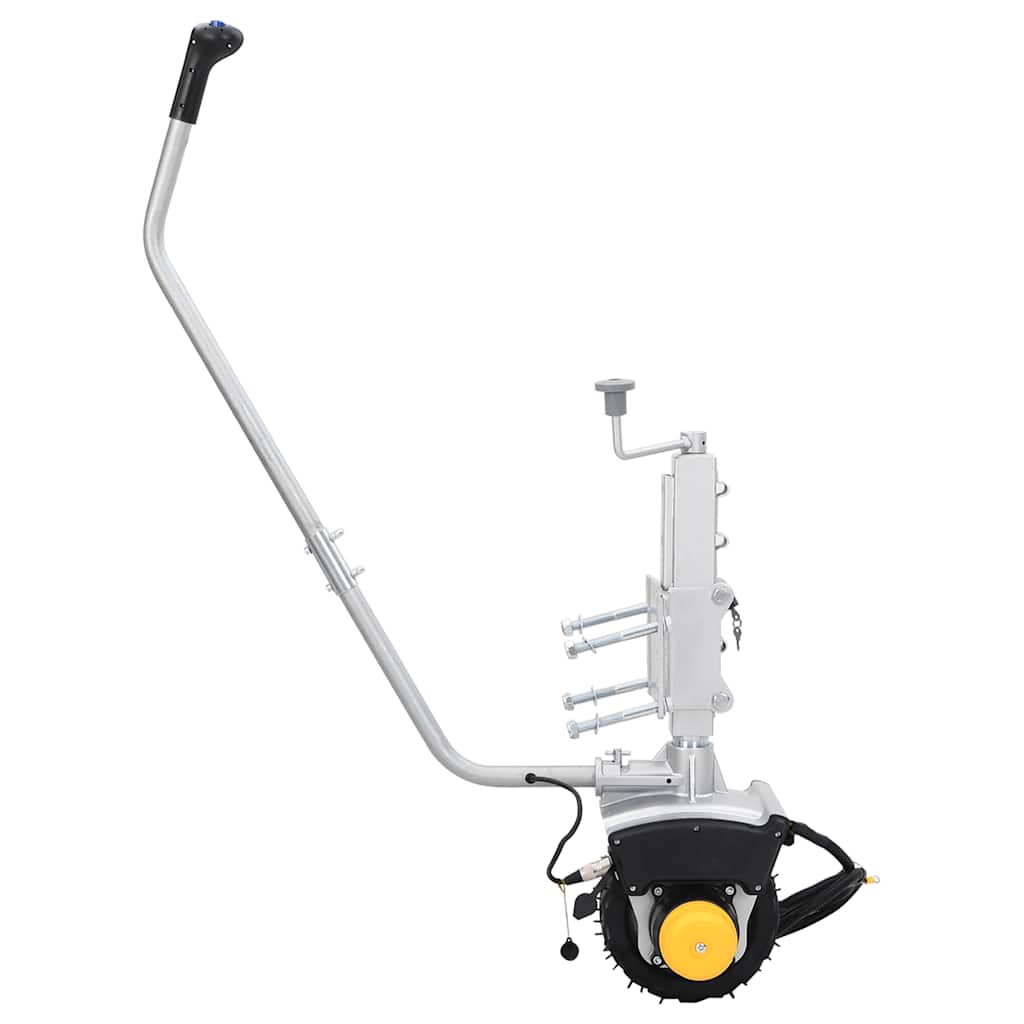

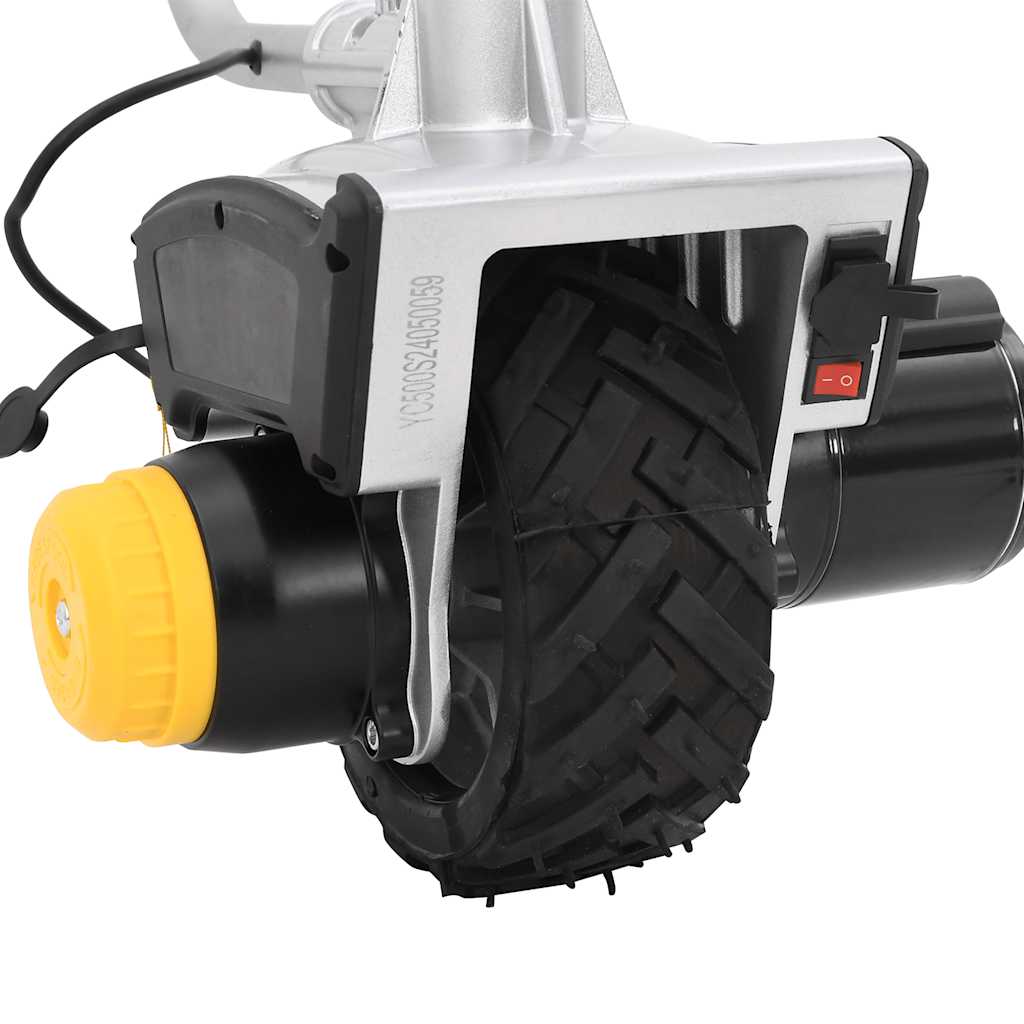

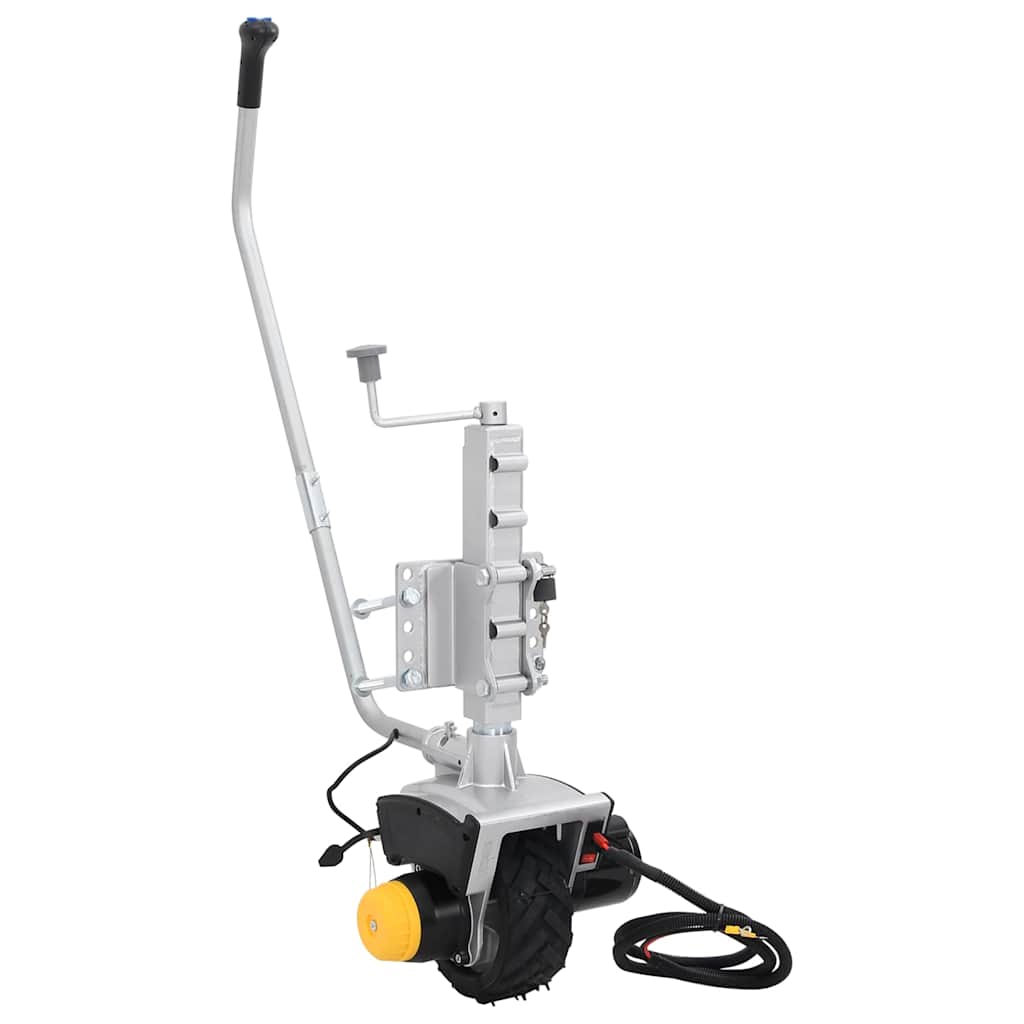

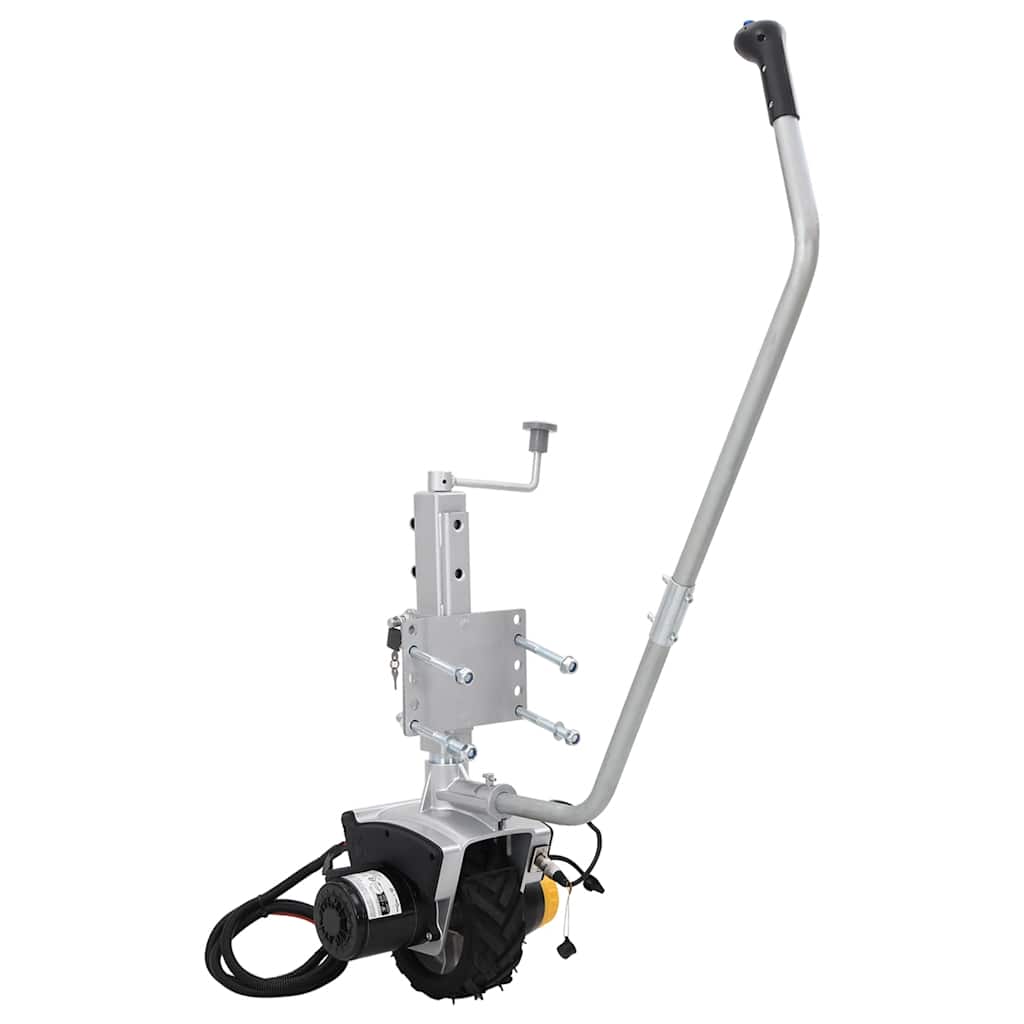

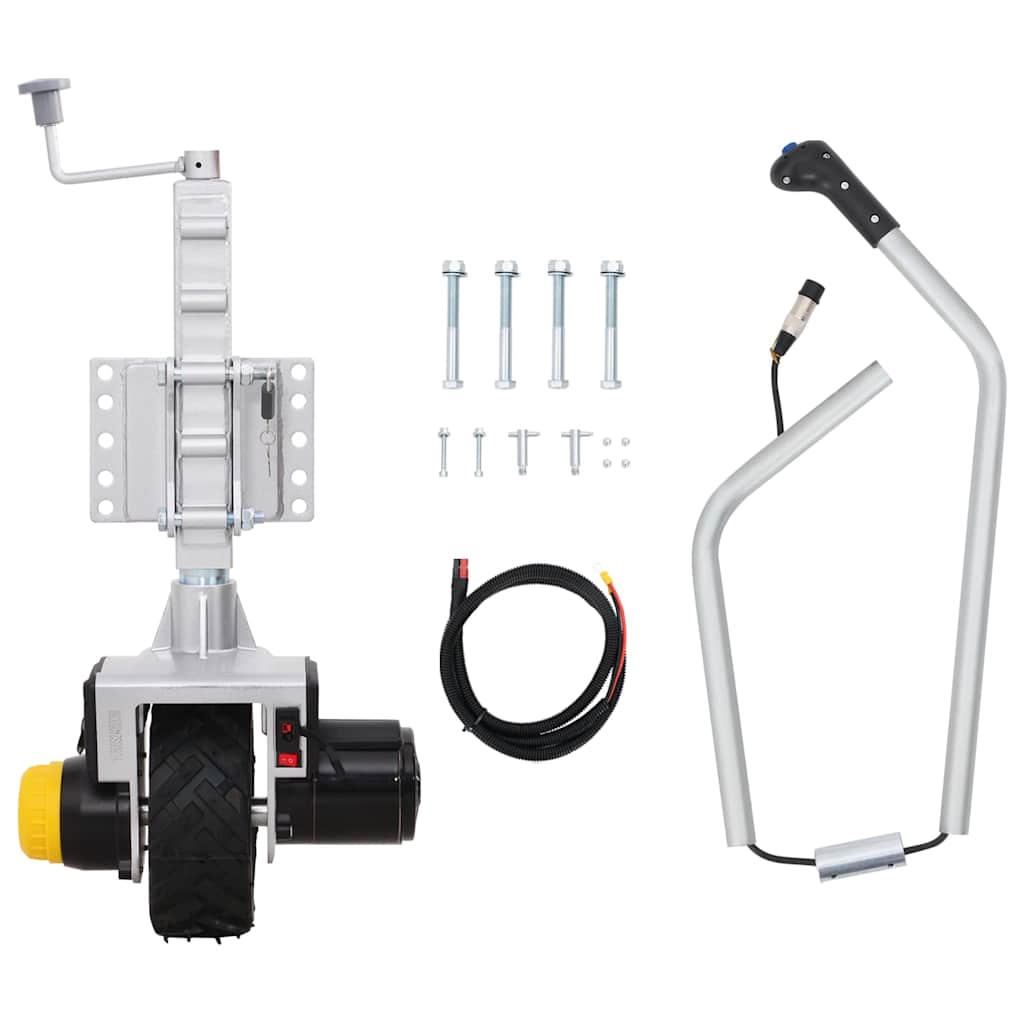

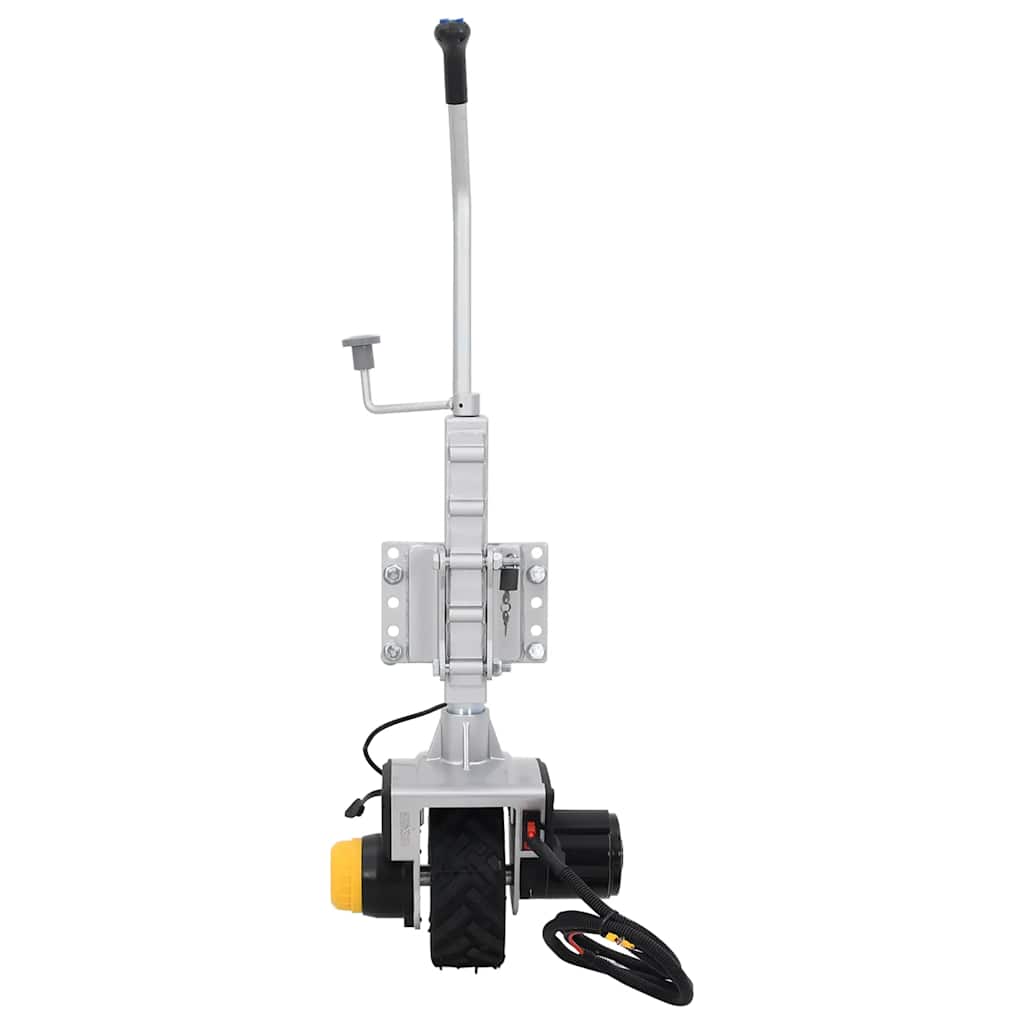

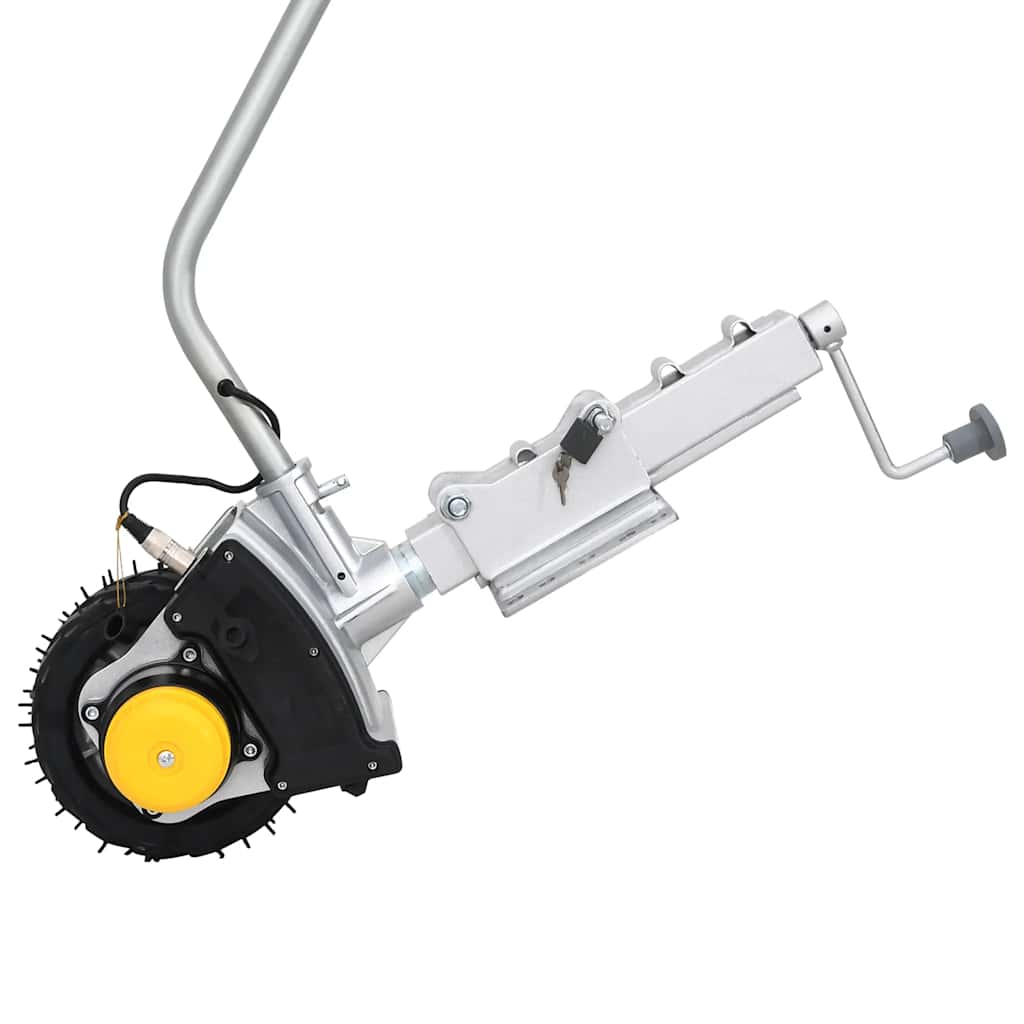

This trailer jack wheel is designed to assist you in moving your trailer with ease. Thanks to its robust construction and powerful 550 W motor, this trailer mover has a weight capacity of up to 2722 kg, allowing you to steer the trailer effortlessly. This clever mover features an automatic brake as well as forward and reverse gears on the steering handle, making it versatile and strong. The trailer jack wheel also comes with a height-adjustable clamp for easy attachment to your trailer, and the non-slip rubber wheel provides excellent traction on tough terrains. This compact and portable trailer mover is highly manoeuvrable, making it suitable for use in confined spaces like yards, carports, driveways, and caravan parks. It is ideal for caravans, boat trailers, horse trailers, and more.Technical specifications
- Colour: Silver
- Material: Aluminium

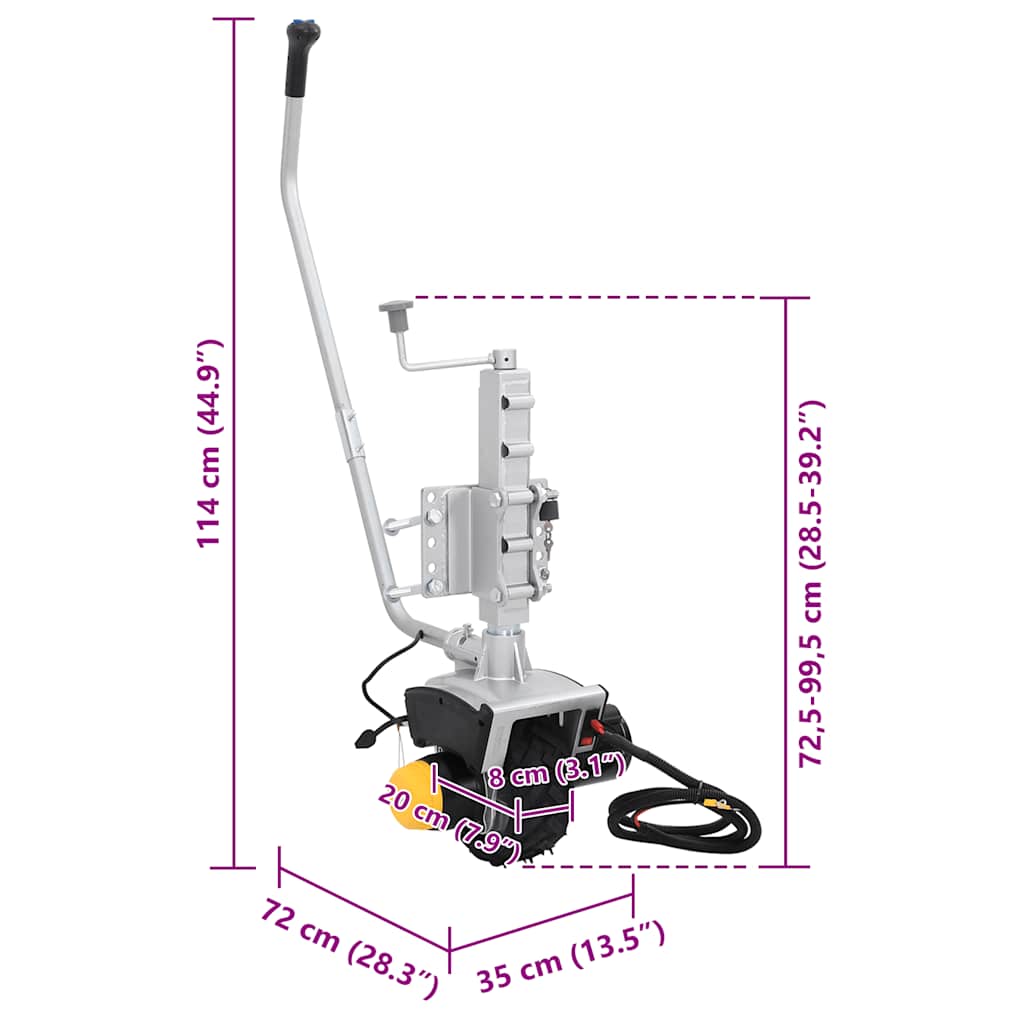

- Overall dimensions: 72 x 35 x 114 cm (L x W x H)
- Motor power: 12 V / 550 W
- Maximum jack load: 498 kg
- Maximum pulling load capacity: 2722 kg
- Diameter of tire: 20 cm
- Width of tire tread: 80 mm
- Gear ratio: 494:1

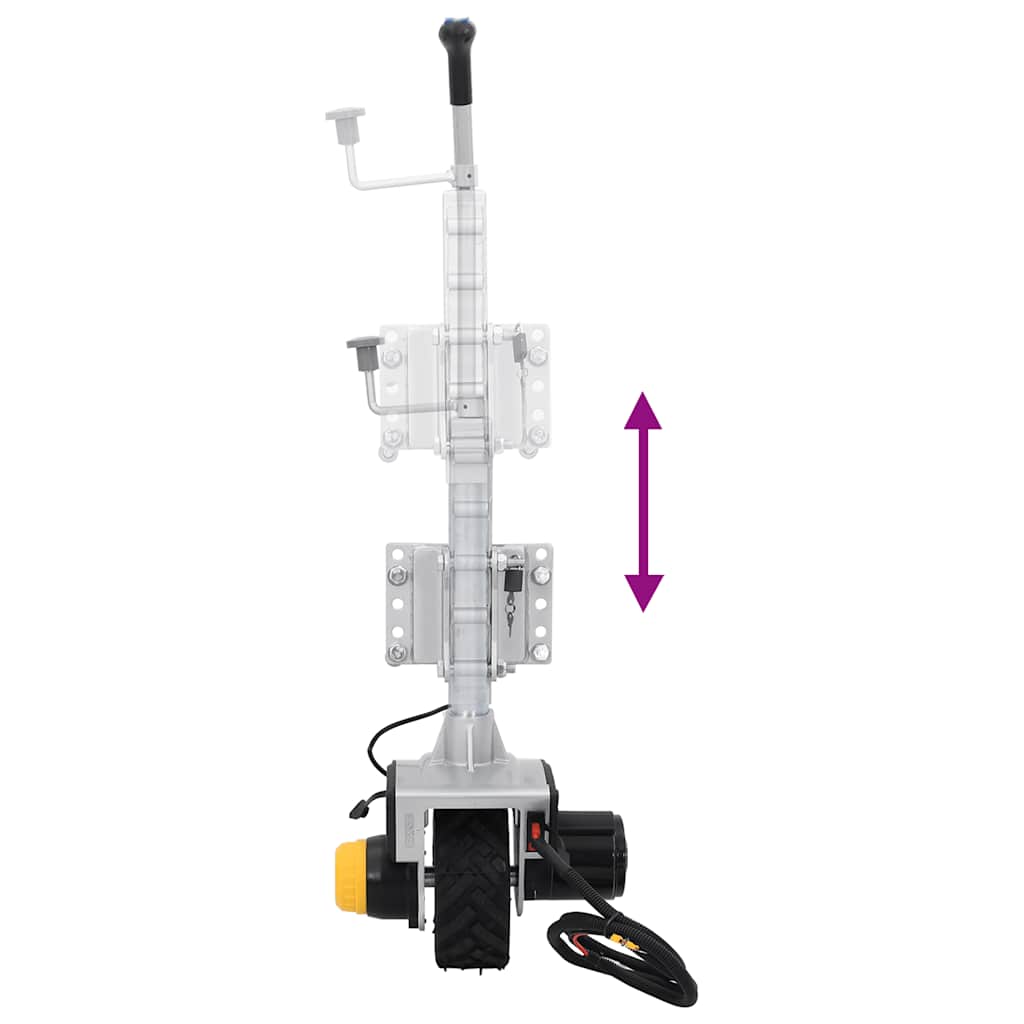

- Adjustable Bracket Height: 31-53 cm
- Moving speed: 6-7 m/min
- Diameter of fixing tube: 25 mm
- Length of connection cord: 1.6 m
- Suitable for use on inclines of maximum 7 degrees
- Recommended power: DC 12 V, ≥ 20 Ah battery (battery not included)

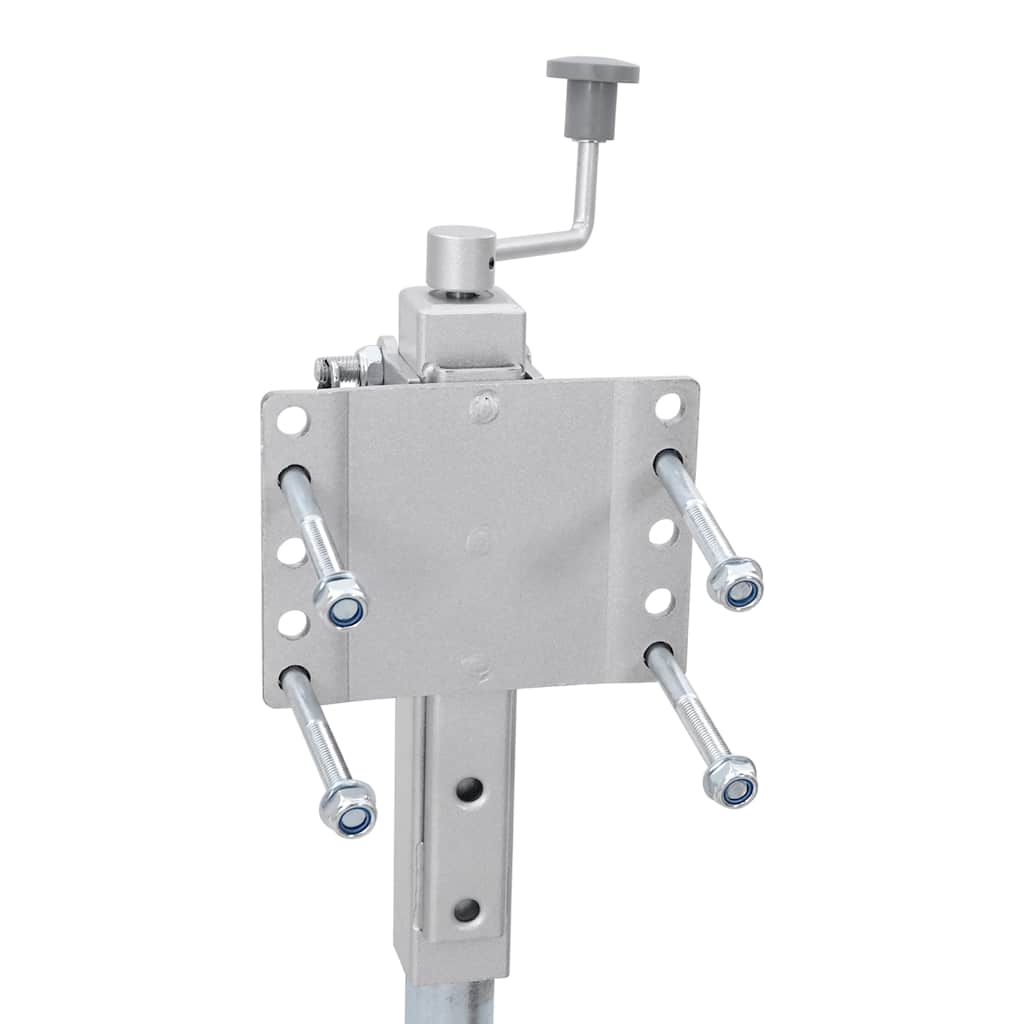

- Hole spacing of fixing accessory: 165 mm
- Net weight: 18.46 kg
Usage
- We recommend using a DC 12V, ≥ 24Ah battery or a jump start for optimal performance.
- For best results, use this trailer mover on hard, flat surfaces. It is not suitable for soft or sloped terrain and is not waterproof.

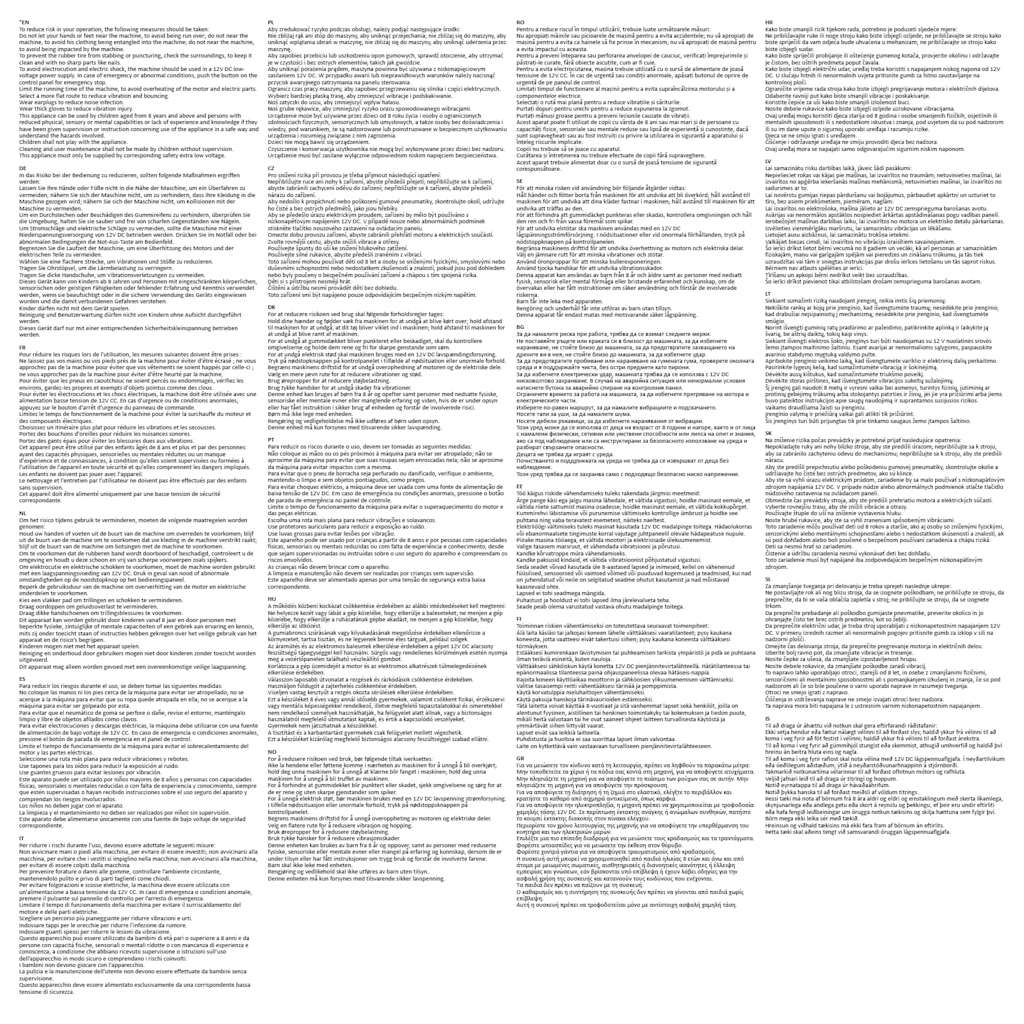

Other information
- To reduce risk in your operation, do not let your hands or feet near the machine to avoid being run over; do not let clothing become entangled in the machine; and do not approach the machine to avoid being impacted.
- To prevent the rubber tire from stabbing or puncturing, keep the surroundings clean and free of sharp objects like nails.
- To avoid electrocution and electric shock, the machine should be used with a 12V DC low-voltage power supply.
- In case of emergency or abnormal conditions, push the button on the control panel for emergency stop.
- Limit the running time of the machine to avoid overheating of the motor and electric parts.
- Select a flatter route to reduce vibration and bouncing.
- Wear earplugs to reduce noise exposure and thick gloves to reduce vibration injury.
- This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory, or mental capabilities if they have been given supervision or instruction concerning safe use and understand the hazards involved. Children shall not play with the appliance, and cleaning and user maintenance shall not be made by children without supervision.
- This appliance must only be supplied by corresponding safety extra low voltage.
