Trend PH/JIG/BK 3-in-1 Pocket Hole Jig TREPHJIGBK

Name: Trend PH/JIG/BK 3-in-1 Pocket Hole Jig TREPHJIGBK
Brand: TREND
SKU: PH/JIG/BK
Price: 52.39 GBP
Availability: InStock

Sold by BuyaParcel

Product information

Description

General description

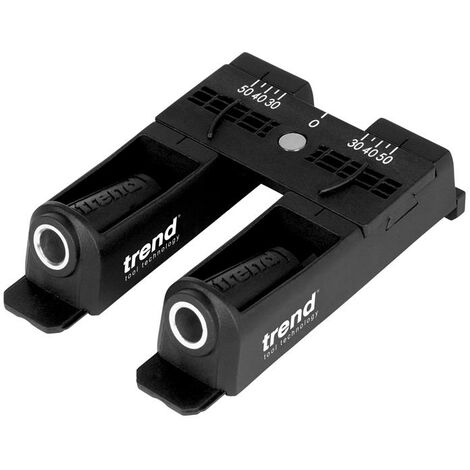

The 3-in-1 Pocket Hole Jig is a versatile and portable woodworking tool designed for creating strong, accurate joints in timber and plywood. It allows for quick setup and adjustment, making it ideal for furniture making, cabinetry, and repair work. The jig supports workpieces from 12.7mm to 38mm thick and can be used to drill single or twin pocket holes with consistent results. It features hardened drilling sleeves for precision and reversible depth gauges for flexibility, suitable for both new projects and repairs.

Technical specifications

Material thickness: 12.7mm to 38mm

Hole pitch: 28mm to 50mm

Drilling angle: 15 degrees

Screw sizes: Fine No.7 x 30mm, Coarse No.7 x 25mm, No.7/8 x 30mm, No.8 x 37mm, No.8 x 50mm, No.8 x 63mm

Part Number: PH/JIG/BK

EAN: 5027654065228

Compatibility and accessories

Works with timber, plywood, MDF, and other sheet materials

Supplied with: 50 assorted screws, HSS drill bit with collar, square drive bit (150mm), adaptor plate, 3mm hex key, carry case

Installation

Attach the jig securely to the workpiece using clamps or a suitable fixture

Set the desired depth using the reversible depth gauges

Insert the drill bit and adjust for the correct screw size

Usage

Align the jig on the workpiece at the desired location

Use the tool to drill pocket holes, choosing single or twin hole configurations as needed

Insert screws to join pieces securely

Suitable for building furniture, cabinets, and small woodworking projects

Other information

Portable, lightweight, and easy to set up without tools

Designed for accurate, consistent pocket holes in various wood types

Features

Brand
TREND
Warranty
1 year(s)
Material
Metal
Pcs per pack
1
Colour
Black
