Metal Concealed Hinge Jig, 35mm Cabinet Hinge Drilling Puncher, Door Hinge Hole Puncher Drill Woodworking Tool

~~£82.99~~

Product information

Description

General description

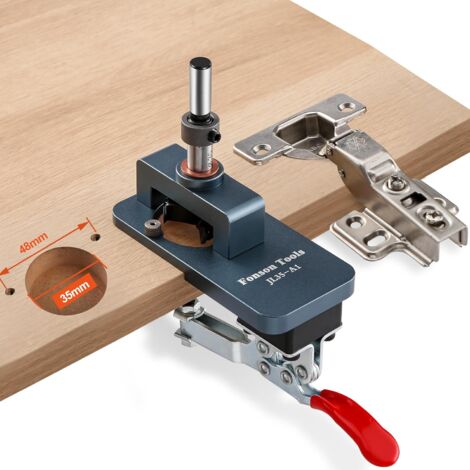

The Metal Concealed Hinge Jig is a high-precision woodworking tool designed for drilling 35mm cabinet hinge holes. Made from durable aluminum alloy, this jig ensures stability and accuracy during use, making it an essential tool for cabinet, kitchen, cupboard, and wardrobe hinge installations.

Technical specifications

Material: Aluminum alloy

Drilling depth: 12-13mm

Clip-on board thickness: 15-25mm

35mm hole edge distance: 5mm

Installation

Adjust the drilling depth of the limit ring to 12-13mm.

Set the size to fit the thickness of the clamped board.

Tighten the locking plate according to the drilling mark.

Drill 35mm and 2mm screw holes on both sides.

Install the hinge.

Usage

The concealed hinge jig allows for quick adjustments and easy clamping, enabling users to drill holes and install hidden cabinet door hinges efficiently. It is compatible with any electric drill and significantly improves the accuracy of hinge installations.

Other information

Package contents: 1 hinge drilling locator body, 1 x 35mm drill bit, 1 x 2mm drill bit, 2 x small wrenches, 1 x hexagonal tool, 1 screw, 1 limit ring.

Features

Brand
GOTRAYS
Material
Metal
Pcs per pack
1
Colour
Grey
Chuck diameter
35 mm
Compatible drill
Standard drill
Weight
650 g
Type of drill accessory
Jig
Chuck
Hexagonal
ManoMano Reference
ME91774183
MMID
110025287206
Product code
GOTRFR-2197-312
EAN
9328872256099
