Ugreat – 12V 24V Wireless Backup Camera – 18 LED Infrared Night Vision – 7-inch LCD Monitor – IP67 Waterproof for Car and Truck

General Description

Wireless backup camera kit including a 7-inch TFT LCD monitor and a night vision backup camera. This system is designed for heavy-duty use, offering a wireless transmission range of up to 15 meters. The monitor features LED backlighting for a brighter image and a wide viewing angle of 170 degrees horizontally and 120 degrees vertically. It supports 420, PAL, and NTSC high-resolution television lines.

Technical Specifications

• Screen Size: 7 inches (16:9 widescreen)
• Resolution: 800 x 480 pixels
• Camera Resolution: 420 TVL
• Lens Angle: 120°
• Minimum Illumination: 0 lux (LED on)
• Transmission Distance: 50 meters
• Operating Frequency: 2400-2483.5 MHz (default: 2370 MHz)
• Transmission Speed: 12 Mbps
• Product Power: ≤ 8.64 W
• Operating Voltage: 12/24 V cc
• Operating temperature: -20°C to +70°C
• Waterproof rating: IP67
• Number of infrared LEDs: 18

Compatibility and accessories

• Two wireless night vision reversing cameras: one for the front and one for the rear of the vehicle.
• Video inputs: 2 channels, selectable V1/V2.

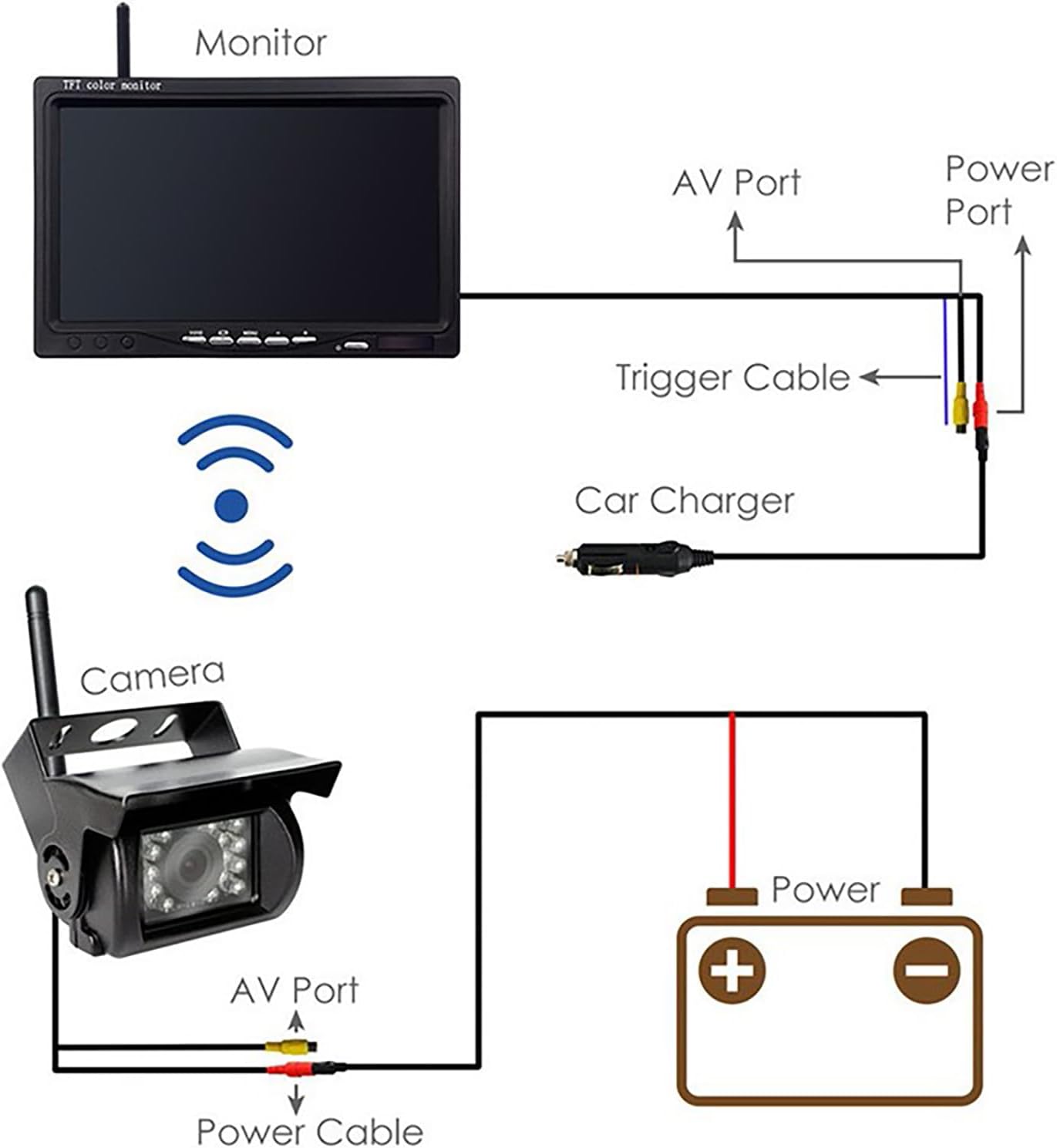

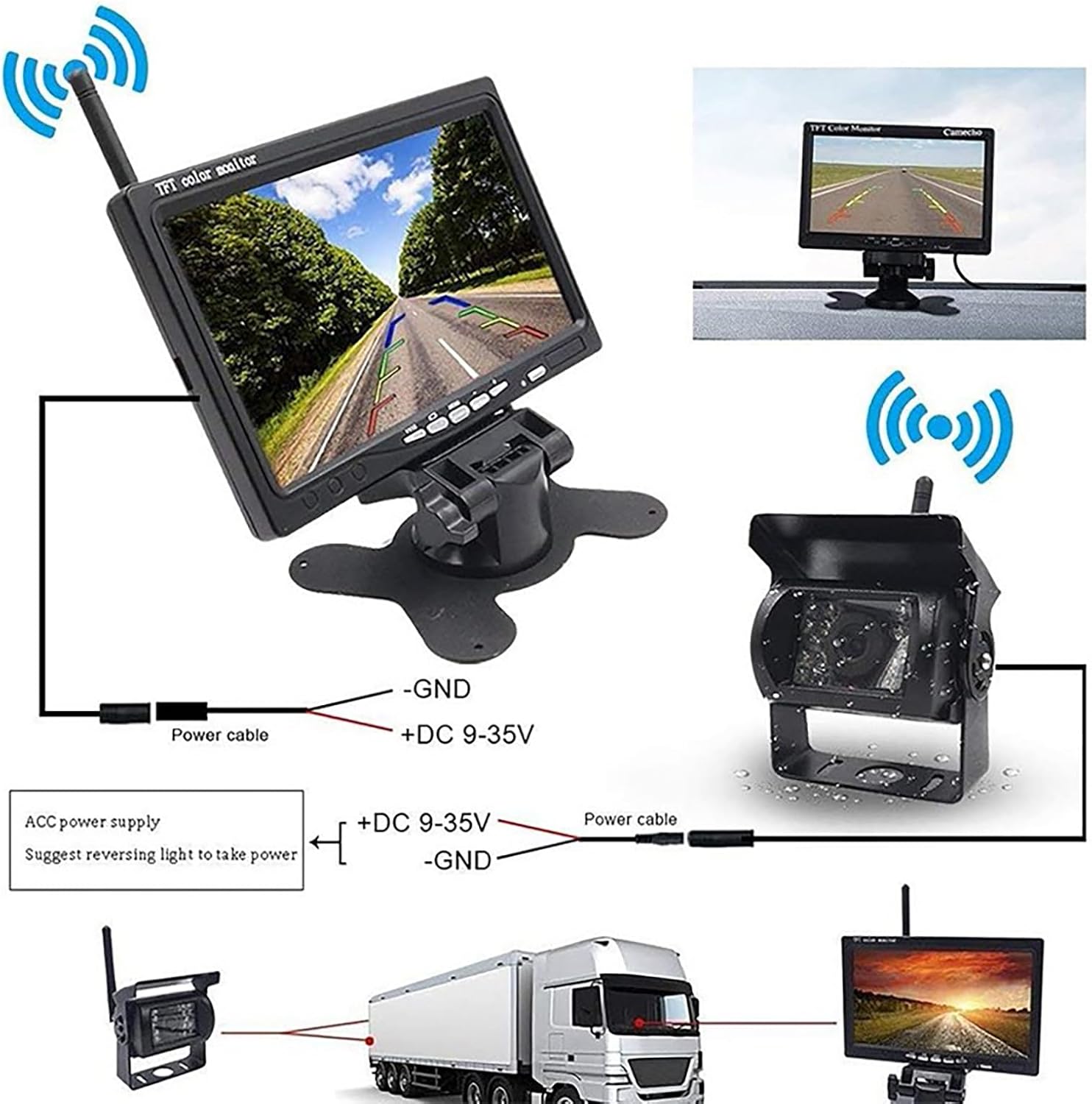

Installation

• Easy to install, the monitor can be mounted on the roof or dashboard.
• The monitor activates automatically when reversing.

Use

• Allows you to view the front and rear of the vehicle at the touch of a button.
• Ideal for safe parking and driving safety.

Other information

• Hard alloy camera housing, water and mud resistant.
• Designed to last without overheating.
