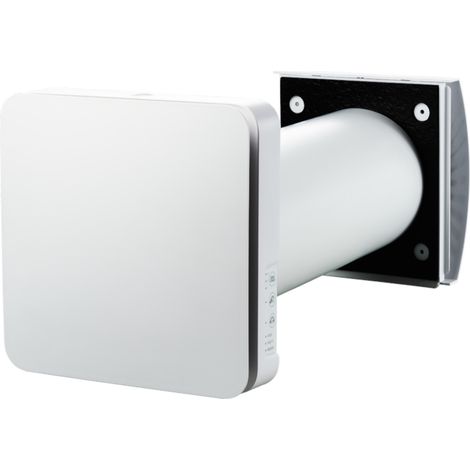

Ventilation system TwinFresh Atmo Wi-Fi Mini with remote

Name: Ventilation system TwinFresh Atmo Wi-Fi Mini with remote
Brand: VENTS
SKU: TwinFresh Atmo Wi-Fi Mini
Price: 369.99 GBP
Availability: InStock

Sold by creoven

Product information

Description

General description

The TwinFresh Atmo Wi-Fi Mini is a single room ventilation system designed for efficient air exchange and heat recovery. It features a ceramic reservoir that enhances heat recovery, making it an ideal choice for maintaining a comfortable indoor climate.

Technical specifications

Power supply: 100-240 V ~ 50/60 Hz

Nominal size of duct: 100 mm

Motor wattage: 1 / 1.6 / 3 W

Current consumption: 0.02 / 0.03 / 0.04 A

Airflow rate ventilation mode: 8 / 16 / 25 m³/h

Airflow rate recovery mode: 4 / 8 / 13 m³/h

Sound pressure level Lp-3m: 10 / 16 / 23 dB(A)

Sound pressure level Lp-1m: 20 / 26 / 33 dB(A)

Permissible temperature range of air: -15°C to +40°C

Heat recovery efficiency: ≤ 81%

IP code: IP24

Protection class: II

Weight: 3 kg

Front panel dimensions: 250 x 250 mm

Outer hood dimensions: 220 x 231 mm

Telescopic tube dimensions: Ø 103 mm x 152 - 500 mm

Diameter of wall insert: 120 mm

Compatibility and accessories

Includes G3 filter

Includes remote control

Manual control panel on the device

Installation

Automatic shutters

Smart Home solution compatible with Vents Home app (available on Apple App Store and Google Play Store)

Usage

Three fan speeds: off, night mode, natural ventilation, permanent ventilation, air supply, heat recovery

Heat recovery mode operates in two cycles, alternating every 70 seconds

Cycle I: Warm air is extracted from the room

Cycle II: Fresh air flows through the heat accumulator, absorbing stored heat and humidity until reaching room temperature

Other information

Cables not included

Features

Brand
VENTS
Colour
White
Shape
Cylindrical
IP rating
IP24
Air flow
8 m³/h
With timer
Yes
Integrated non-return valve
Yes
Presence detector
Yes
Integrated moisture detection
Yes
Duct diameter
100 mm
Height
15.2 cm
Silent model
Yes
Weight
3420 g
For bathroom
Yes
Noise level
33 dB
Pcs per pack
1
Ball bearings
Yes
Power indicator light
Yes
ManoMano Reference
ME95346107
MMID
874582130645
Product code
TwinFresh Atmo Wi-Fi Mini
EAN
4824032335239
