VEVOR 12V Linear Actuator, 8 Inch Stroke IP65 Waterproof Linear Actuator, 675lbs/3000N 0.2"/s Motion Actuators with Mounting Bracket for Solar Trackers, Industrial Machinery, Door Opener

VEVOR Linear Actuator

Efficient Stroke Adjustment, Smooth Motion Control

Help you achieve a more efficient and stable automation experience with VEVOR 12V linear actuator, boasting IP65 protection level, 675lbs powerful linear force, and 0.2"/s precise travel speed, ideal for solar trackers, agricultural machinery, industrial use, and more automation applications.

• IP65 Superior Protection
• Strong Torque Output
• Durable and Sturdy
• Versatile Applications
• Key Specifications

Efficient Stroke Adjustment, Smooth Motion Control

Help you achieve a more efficient and stable automation experience with VEVOR 12V linear actuator, boasting IP65 protection level, 675lbs powerful linear force, and 0.2"/s precise travel speed, ideal for agricultural machinery, industrial use, and more automation applications.

Key Features

• IP65 Superior Protection: Rated IP65 for dust and water resistance, VEVOR's 12V linear actuator is suitable for use in outdoor environments. Ideal for lawn mowers, solar panel tracking systems and irrigation systems. (For longer lifespan, prolonged outdoor exposure is not recommended)
• Strong Torque Output: 675lbs (3000N) powerful torque output excels in various demanding tasks like agricultural machinery, construction equipment, and industrial automation, ensuring reliable performance in medium-load applications
• Durable and Sturdy: Featuring an aluminum alloy housing and precision screw drive, the 12V linear actuator offers enhanced wear resistance and long-lasting stability. Operating under 65 dB (no-load noise) to reduce vibration and jamming during frequent cycles
• Versatile Applications: Our linear motion actuator integrates across a wide range of applications, from furniture and home automation to industrial systems, mechanical equipment, transportation, and beyond. Empower automation at every step
• Key Specifications: Travel Speed: 0.2"/s (5 mm/s); Stroke Length: 8" (203.2 mm); Extended Length: 21" (533.4 mm); Retracted Length: 13" (330.2 mm); Current Draw: 6 Amps; Input Voltage: DC 12V; Duty Cycle: 25%

VEVOR 12V linear actuator offers a powerful 675 lbs vertical lifting force and horizontal pushing power, handling various medium-load applications such as solar panel tracking systems, irrigation systems, mechanical equipment, or lawn mowers.

IP65 protection rating provides exceptional dust and water resistance, ensuring reliable operation in indoor and outdoor conditions. (Note: For longer longevity, prolonged outdoor exposure is not recommended; Water should not penetrate the interior of the motor)

For optimal performance, we recommend using the linear actuator in conjunction with a controller, enabling more precise movement control. This product only provides the push rod; additional equipment required for installation need be purchased separately.

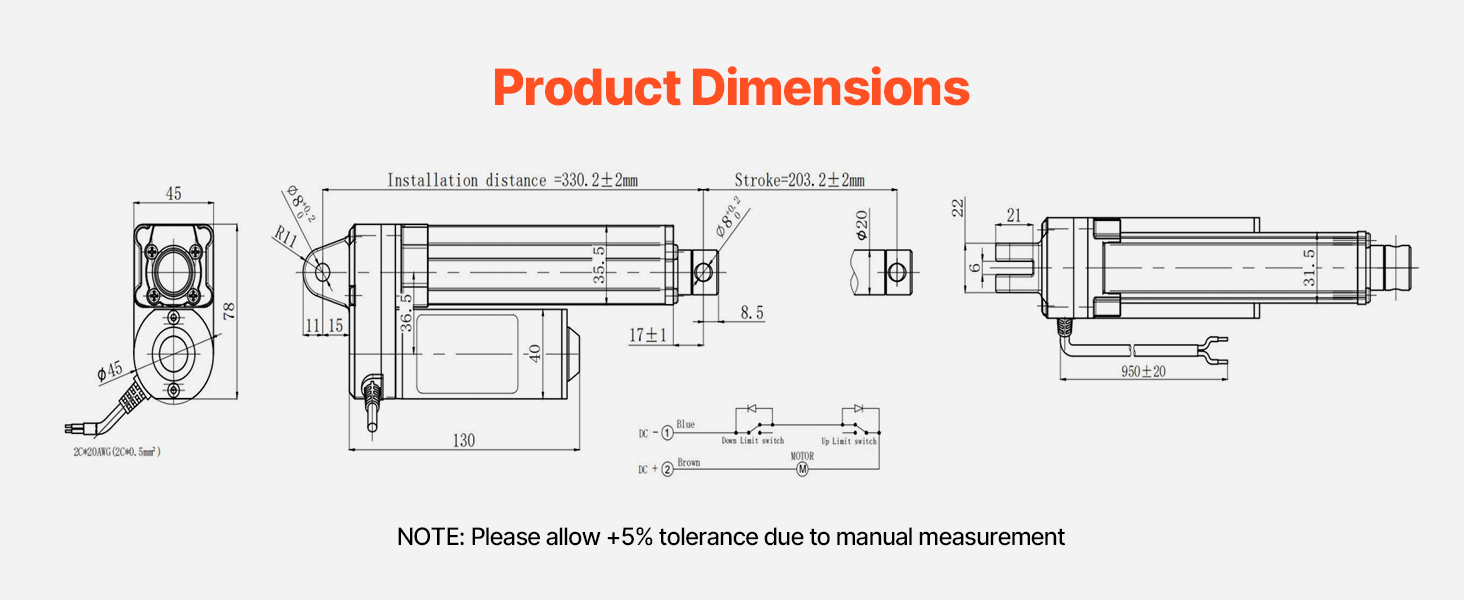

Clearly displayed product dimensions for your reference, ensuring the optimal selection and fit. Stroke Length: 8" (203.2 mm); Extended Length: 21" (533.4 mm); Retracted Length: 13" (330.2 mm).

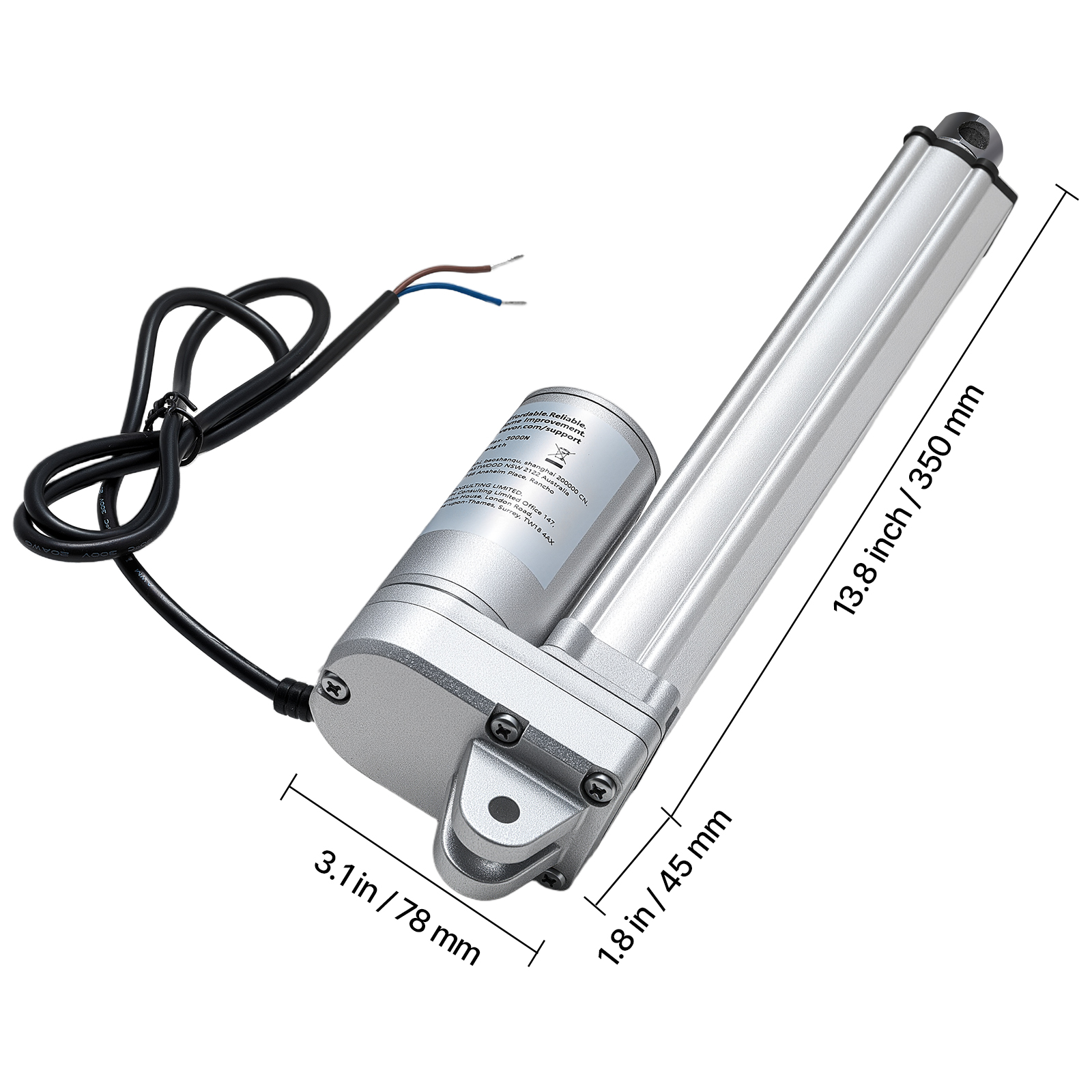

	Specification Item Model Number: SY-A04B Input Voltage: DC 12V Maximum Load / Thrust: 3000N (675 lbs) Travel Speed: 0.2 inch/s (5 mm/s) Stroke Length: 8 inch / 203.2 mm Extended Length: 21 inch / 533.4 mm Retracted Length: 13 inch / 330.2 mm IP Rating: IP65 Main Material: Aluminum Alloy Net Weight: 3.7 lbs / 1.66 kg Product Dimensions: 13.8 x 3.1 x 1.8 inch / 350 x 78 x 45 mm
	Package Content 2 x Mounting Brackets 2 x Screws 2 x R-Type Pins
