General description

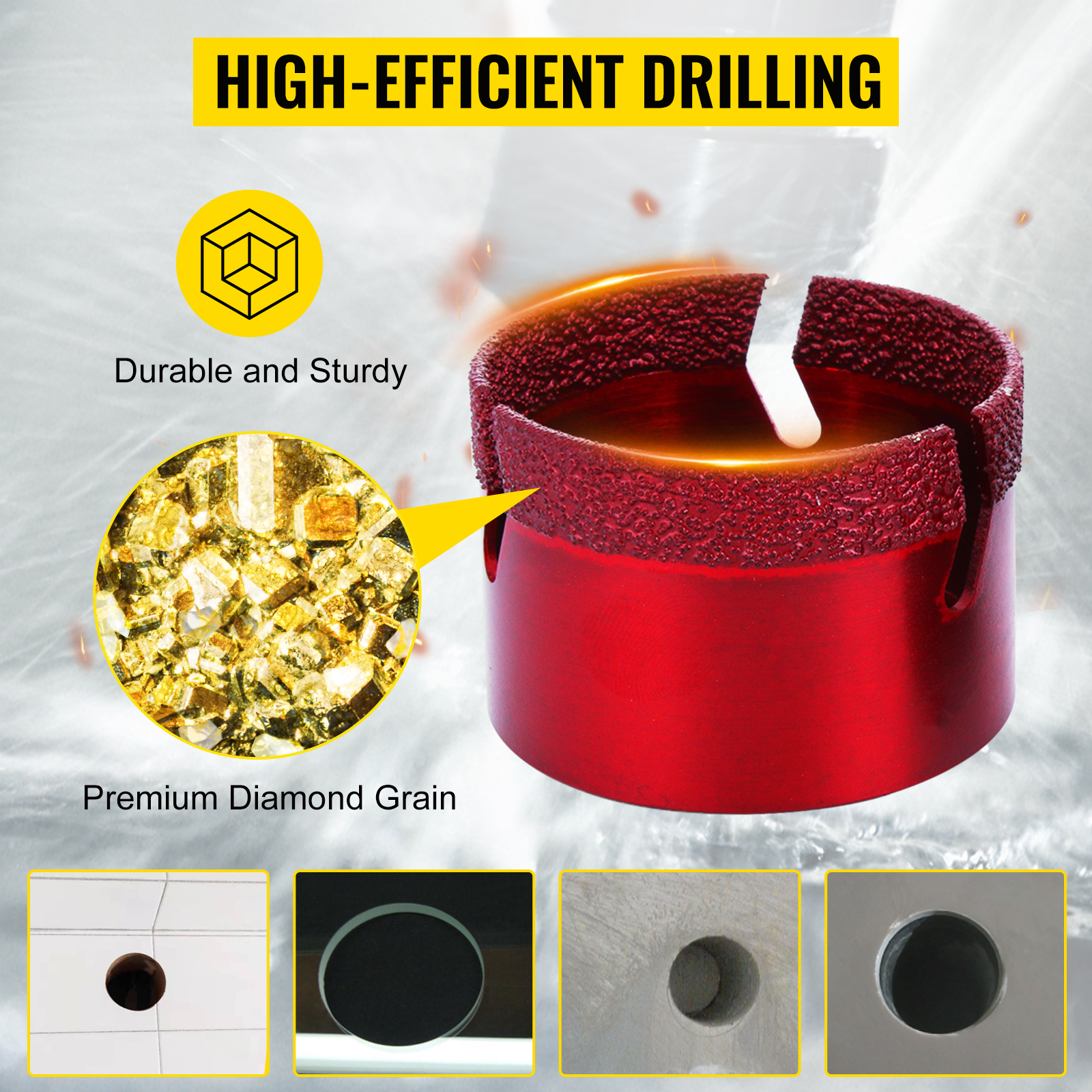

Unleash the potential of precision drilling with the Mophorn Diamond Drill Bit Set, designed for efficient cutting through various materials including tile, ceramic, marble, and porcelain. This versatile kit features sizes ranging from 20 mm to 68 mm (0.8 to 2.7 inches) and is equipped with an M14 thread, ensuring a tidy workspace as no water is needed during operation. Safety precautions include wearing gloves and a mask, and using a vacuum cleaner for dust particles.Technical specifications
- Model: KKQ8P
- Material: Diamond

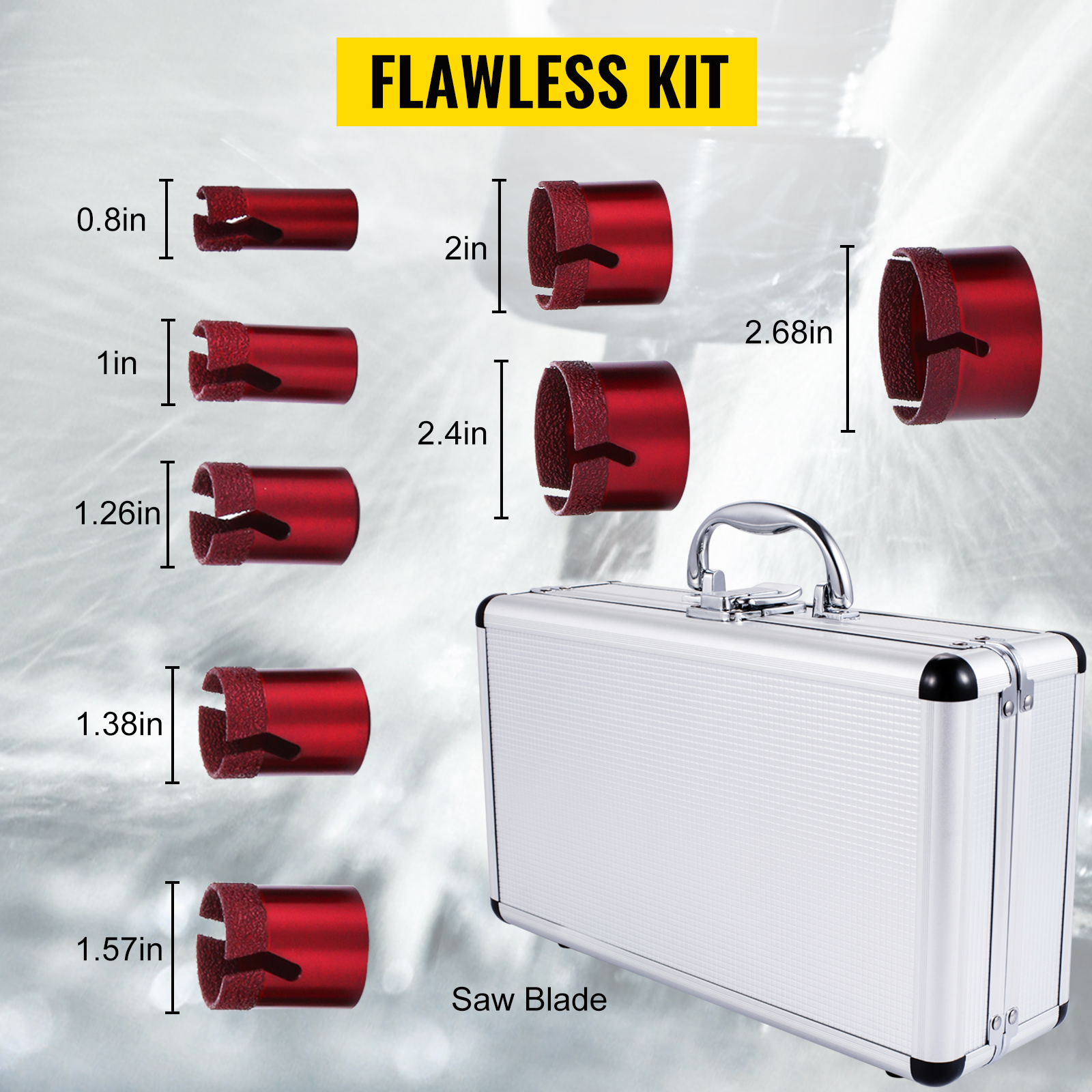

- Drill Bits Diameter: 20/25/32/35/40/50/60/68 mm
- Drill Bits Diameter (Inch): 0.8"/0.98"/1.3"/1.4"/1.6"/1.96"/2"/2.7"
- Maximum Drilling Depth: 45 mm (1.8")

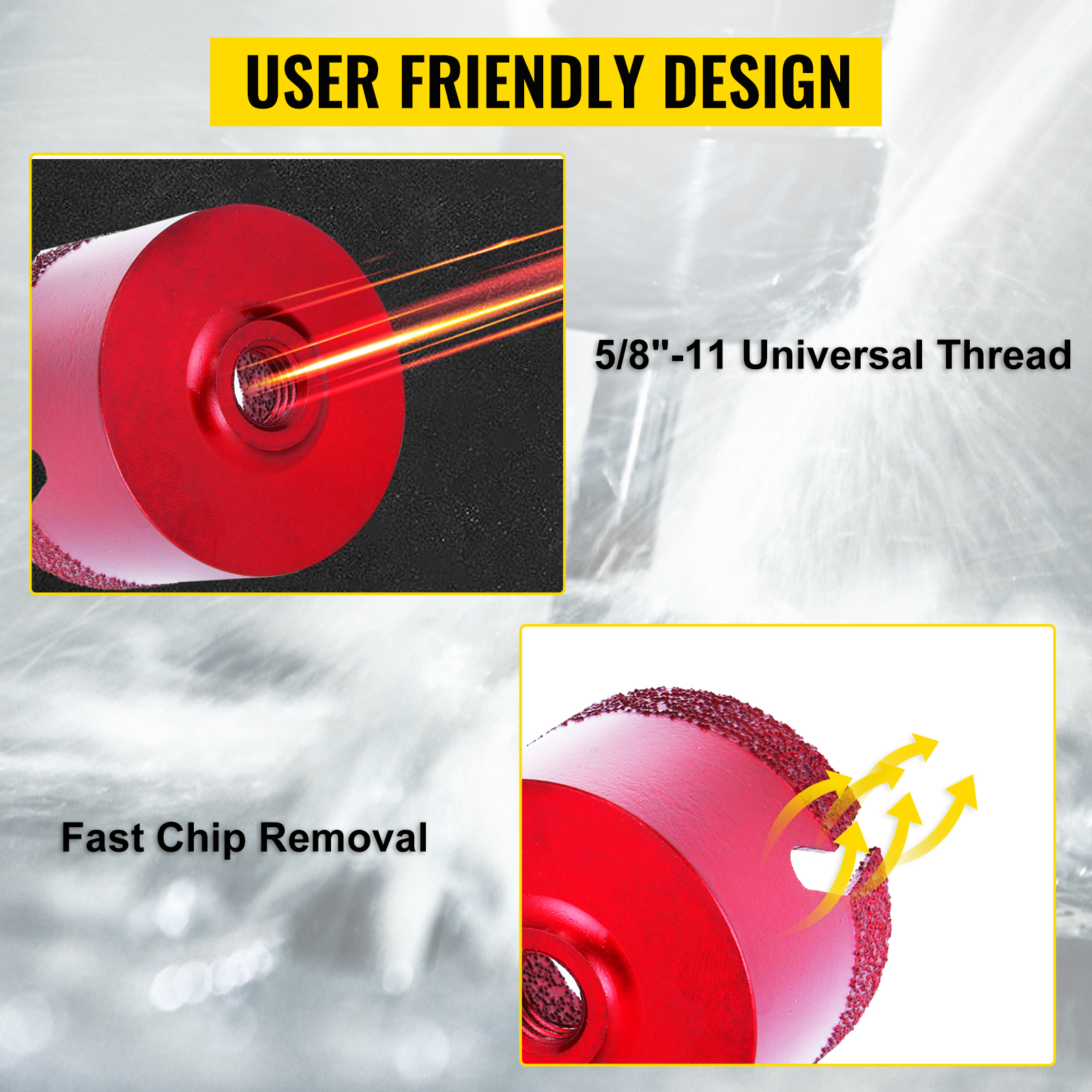

- Mounting Thread: M14
Compatibility and accessories
- Compatible with most angle grinders due to the M14 universal thread.

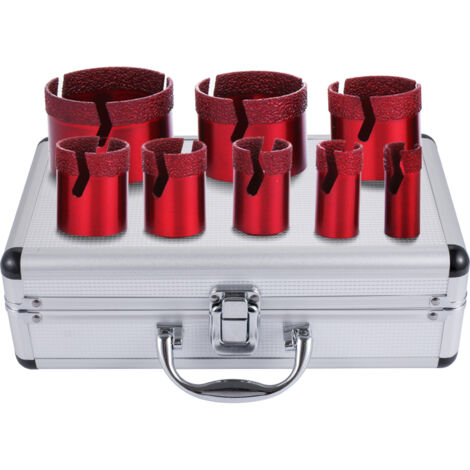

- Includes 8 diamond drill bits and a portable suitcase for easy storage and transportation.
Installation
Connect the diamond drill bits to an angle grinder and start drilling with a pilot hole to maintain accuracy and prevent deviation.
Usage
Begin drilling at a 45-degree angle, then adjust to a 90-degree angle for horizontal surfaces. The drill bits are designed for both dry and wet cutting environments, with wet cutting enhancing smoothness and efficiency.
