General description

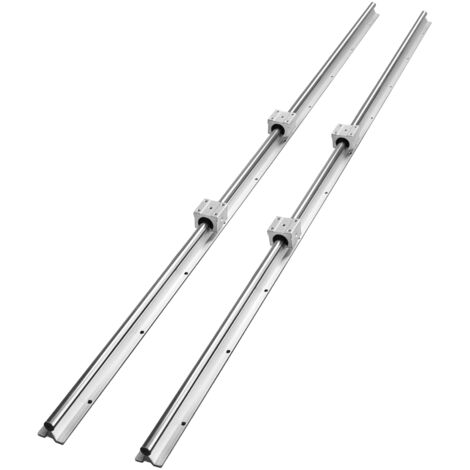

VEVOR high-quality SBR linear guide rail set includes 2 guide rails and 4 slide blocks, designed for high precision and smooth movement in various automated machines and DIY projects. The durable aluminum guide rails feature precise hole diameters and distances, while the SBR slide blocks utilize ball bearings for unobstructed movement.Technical specifications
- Model Number: SBR16-C 1500L
- Slide Block Model: SBR16UU
- Guide Rail Length: 59 in/1500 mm
- Shaft Diameter: Φ16 mm
- Dynamic Load (per block): 774 N
- Static Load (per block): 1180 N
- Material: High Carbon Steel & Aluminum
- Mounting Hole Distance A: 1.3 in/32 mm
- Mounting Hole Distance B: 1.2 in/30 mm
- Slide Block Size (L x W x H): 1.8 x 1.8 x 1.3 in/45 x 45 x 33 mm
- Product Dimensions (L x W x H): 59 x 3.1 x 1.3 in/1500 x 80 x 32.2 mm
- Package Size (L x W x H): 64.2 x 5.1 x 3.1 in/1630 x 130 x 80 mm
- Net Weight: 15.9 lbs/7.2 kg
Compatibility and accessories
- 2 x SBR16 1500mm Linear Guide Rails with Supports
- 4 x SBR16UU Sliding Blocks
Usage
The SBR linear rail set is versatile and suitable for various high-load automation equipment and DIY projects, including router/mill/lathe sleds, 3D printers, laser engravers, CNC machines, and trainer rocker plates.Other information
