General description
The VEVOR NEMA Steel Enclosure is a robust electrical box designed for both indoor and outdoor use. Constructed from high-quality carbon steel, this enclosure offers superior protection for your electrical components against harsh weather conditions. With an IP66 waterproof rating, it effectively safeguards your equipment from dust, moisture, and corrosion, making it ideal for various applications including factories, construction sites, and residential areas.Technical specifications
- Model: SPT
- Color: Gray White (RAL7035)
- Material: 0.059'' / 1.5 mm Carbon Steel
- Coating: Epoxy Polyester Powder Coating
- Mounting Plate: 0.079'' / 2 mm Detachable Galvanized Backplate
- IP Rating: Designed to meet IP66 and NEMA 1, 2, 4, 4X, & 12 specifications
- Connection Type: Hinged
- Feature: Lockable, Waterproof
- Galvanized Backplate Dimensions: 6" x 6" / 15 x 15 cm
- Outer Dimensions (H x W x D): 8'' x 8'' x 6'' / 20 x 20 x 15 cm
- Inner Dimensions (H x W x D): 7.8'' x 7.8'' x 4.6'' / 19.7 x 19.7 x 11.65 cm
- Product Weight: 7.72 lbs / 3.5 kg
- Certification: CE / ROHS Certification
Compatibility and accessories

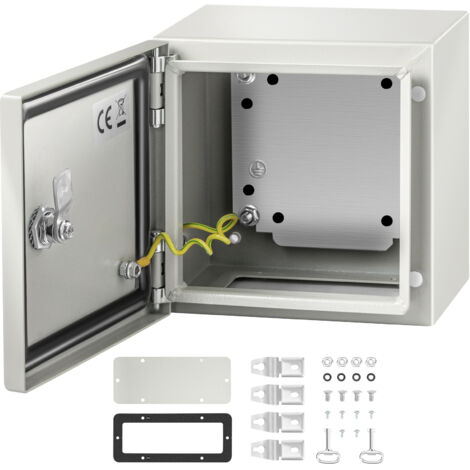

- 1 x Electrical Box
- 2 x Keys
- 1 x Mounting Plate (assembled in the box)
- 1 x Set of Wall Mounting Pendants
- 1 x Bottom Sealing Plate
Installation
The junction box features a detachable galvanized mounting backplate for easy installation of electrical components. It includes four wall-mounted holes on the back for quick and secure mounting.Usage
This electrical junction box is suitable for protecting circuits and preventing corrosion in various environments, including factories, construction sites, shopping malls, and residential areas.Other information
