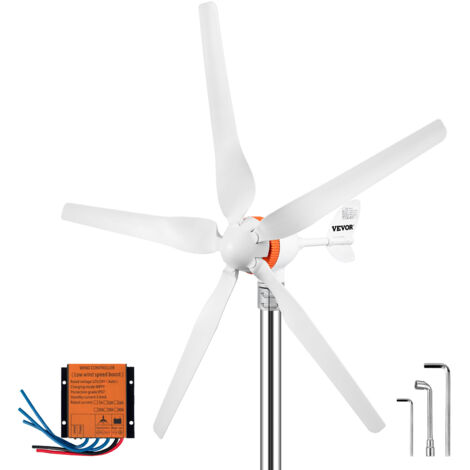

VEVOR Wind Turbine Generator, 12V/AC Wind Turbine Kit, 500W Wind Power Generator With MPPT Controller 5 Blades Auto Adjust Windward Direction Suitable for Terrace, Marine, Motor Home, Chalet, Boat

500W/12V Wind Turbine Generator 5 Blades
This wind generator comprises a high-quality aluminum body, a stainless steel tail, and a nylon fiber blade. The turbine adopts a three-phase magnet motor, external MPPT controller, and installed hoop to provide you with high power efficiency and effortless installation. In addition, the turbine features low start-up speed, high wind energy utilization, low vibration, and a beautiful appearance, suitable for marine, boat, backyard, and other home charging usage.

• Excellent Generator
• Low Start-up Speed
• Easy Assembly
• High-quality Material

Features & Details

• Excellent Generator: The generator adopts 300W/12V three-phase NdFeB permanent magnet synchronous motor, low noise, and long lifespan. The outer shell is designed for fast heat dissipation. And the external MPPT controller provides you an efficient tracking performance.
• Low Start-up Speed: The blade is made of nylon fiber, waterproof, corrosion-proof, and lightweight. Temperature bearing is available from -40℃ to 80℃. The generator's start speed only needs 2 m/s, and it can automatically adjust the direction to get the maximum wind speed.
• Easy Assembly: This wind turbine kit will come with the hoop installed, more convenient than the flange. Meanwhile, the blade is accurately designed with the hub and fixing accessories, providing easier assembly for you.
• High-quality Material: The turbine's body is made of die-casting aluminum, and the tail is made of stainless steel, features of casting shape, model in one, high tenacity. The surface of the turbine is disposed of baking varnish, corrosion-proof, waterproof, and durable.
• Various Application: With high wind energy utilization and efficiency, the wind turbine can be widely used in charging for home monitoring, motor home, boats, gazebos, chalets, marine, and any other home usage.

Specifications

• Model: VV-FLFDJ-S7-5Y500W12VKZQ
• Rated Power: 500W
• Max Power: 500W
• Rated Voltage: 12V/AC
• Rated Current: 29A
• Hoop Diameter: 2in/54mm

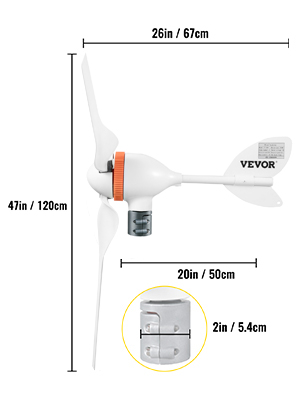

• Rotor Diameter: 47in/1.2m
• Net Weight: 21lb/9.5kg
• Blade Numbers: 5
• Blade Material: Nylon Fiber
• Start-up Wind Speed: 6.56ft/s(2m/s)
• Rated Wind Speed: 42.65ft/s(13m/s)
• Survival Wind Speed: 164ft/s(50m/s)
• Rated Speed: 900r/min
• Working Temperature: -104℉~176℉/-40℃~80℃
• Package Dimension: 27x11.5x7.5in/69x29.5x19.5cm
• Generator: 3-Phase AC Permanent Magnet
• Magnetic Material: Neodymium Iron Boron
• Controller System: Electromagnetic/Yaw
• Regulating Way: Automatic Adjustment
• Cabin Material: Die Casting Aluminum with Paint Coated Finish
• Tail Material: Stainless Steel with Paint Coated Finish

Package Content

• 1 x Wind Turbine Generator
• 1 x MPPT Controller
• 1 x Set Screws and Nuts
• 1 x Instruction Manual
• 5 x Nylon Blades
• Steel Pipe Does Not Include


Efficient Generator

Our windmill turbine adopts a three-phase synchronous motor with a high-performance NdFeB permanent magnet. The external MPPT controller and Teflon copper wire feature overheating protection. Meanwhile, the outer shell is designed for fast heat dissipation, provides you with long-term use.

High-quality Blade

The longer the turbine blade is, the more power it produces. The blade is made of nylon fiber, 47in/120 cm in rotor diameter. Nylon material features waterproof, corrosion-proof, and lightweight. In addition, the working temperature is -40℃~80℃, so you do not need to worry about using it under bad weather.

Effortless Installation

Our wind power generator features hoop installation, double side blade design, and accurate hub & blade groove. This upgraded wind turbine provides you convenient and fast assembly, avoiding the wrong installation of flange type, saving more effort and time for you.

Low Wind Speed Start

The windmill generator can start at a wind speed of 2 m/s, survive at 50 m/s. The blade features a yaw adjustment system. It can automatically adjust direction to capture the maximum wind energy. Also, with a double ball bearing design, the turbine will have low vibration when the blade is rotating.

Premium Material

This home wind turbine is combined with a die-casting aluminum body and a stainless steel tail. The features are casting shape in one, high intensity. In addition, the surface of the turbine is finished with baking varnish, which features corrosion-proof, waterproof, and durable for a long lifespan.

Wide Application

The small wind turbine generator kit can produce energy to meet your various charging requirements. Meanwhile, it is convenient to install and maintain, perfectly suitable for charging needs of home monitoring, motor home, boats, gazebos, chalets, marine, etc.
