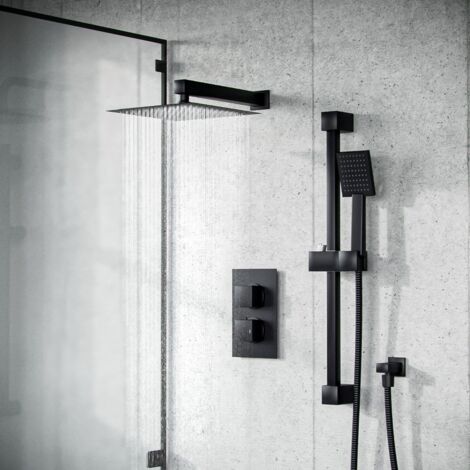

Voilet 2 Dial 2 Outlet Square Concealed Thermostatic Mixer Valve, Shower Head, Slider Rail & Handset Matte Black

GENERAL DESCRIPTION

The concealed shower valve features two easy controls for temperature and flow, and comes with a contemporary square face plate.

TECHNICAL SPECIFICATIONS

• Black matte finish
• Durable solid brass construction
• Top Dial - controls water to 2 outlet diverters
• Bottom Dial - temperature control
• Slim Shower Head Design
• Shower Head: 200mm Square
• Style: Slim
• Shape: Square
• Material: Brass
• Colour: Black
• Finish: Matte
• Single-mode shower head with swivel joint
• Rub clean anti-scale nozzles
• 40mm Thread
• ½ Inch Shower Head Connection
• Handset Shape: Square
• Handset Modes: Single
• Handset Material: ABS plastic
• Rubber easy-clean nozzles
• Slider Rail Height: 710 mm
• Slider Rail Width: 130 mm
• Sliding angle adjustable handset bracket
• Braided, flexible 1.5m double interlocking shower hose
• Operating range 20-50ºC, with 38ºC safety button
• Built-in non-return valves to prevent backflow
• Chosen temperature maintained to within +/-1ºC
• Automatic shut off in event of water cold supply failure

COMPATIBILITY AND ACCESSORIES

• Suitable for Combi-boilers
• Suitable for Gravity Fed systems
• Suitable for MegaFlow Systems
• Suitable for Pumped systems
• Suitable for Un-vented systems
• Suitable for Pressurised cylinder systems
• Minimum pressure: 0.5 bar, Maximum pressure: 7.0 bar

PACKAGE CONTENTS

• Shower Valve
• Shower Arm
• 200mm Shower Head
• Slider Rail Kit
• Elbow Wall Outlet
