Description

General description

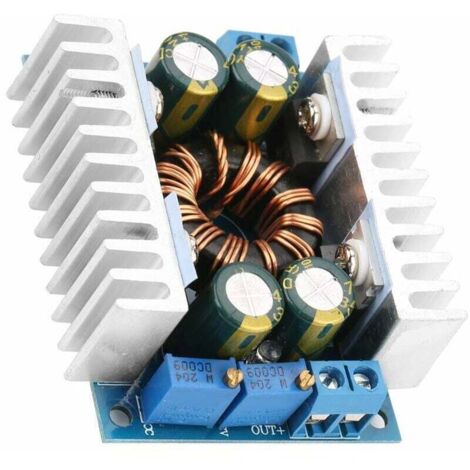

This non-isolated synchronous rectification step-down module is a high-performance DC-regulated power converter. It efficiently converts an input voltage of 5-30VDC into a continuously adjustable output voltage ranging from 1.25-30VDC. The module is designed for stable output and features high-quality components that ensure a conversion efficiency of up to 93%. It is equipped with two heat sinks for improved heat dissipation and supports over-temperature protection.

Technical specifications

Type: Non-isolated synchronous rectification step-down module

Input Voltage: DC 5-30V

Input Current: 8A (MAX), 10A (within 6A for long-time work)

Quiescent Current: 4mA (varies with operating voltage)

Output Voltage: 1.25-30V continuously adjustable

Output Current: 10A (MAX), long-term natural cooling lower 5A

Constant Current Output Range: 0.2-10A

Operating Temperature: -40 to +85°C

Frequency: 150 kHz

Conversion Efficiency: typical 91%, maximum 93%

Weight: approx. 70 g / 2.5 oz

Other information

Overcurrent protection: Yes

Short circuit protection: Yes (current limiting protection)

Overheating protection: Yes (automatic output voltage reduction)

Input reverse current protection: No (connect a diode in series if necessary)

Output reverse current protection: Yes (no need to add the diode for charging)

Wiring method: Terminal block output (IN is input, OUT is output)

Package list: 1 module

Features

Brand
YMYNY
Voltage
24 V
Output waveform
Quasi-sine wave
Amperage
8 A
Nominal intensity
DC
Power
17 W
Conversion type
DC to DC
Connection port type
Power supply
ManoMano Reference
ME93834898
MMID
913882026255
Product code
XHWD-M-XXW-7986
EAN
6095973118863

Voltage Regulator DC 5-30V to 1.25-30V DC Boost Converter Step-up/Step-down Converter Alivable Boost Buck Office Voltage Regulator Module MUMU
