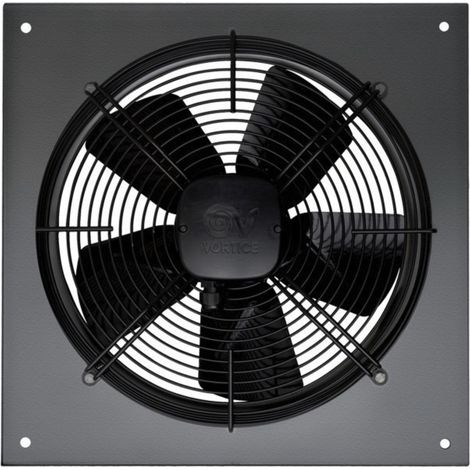

Axial Wall Fan Extractor A-E 304 M IP54

Product out of stock

Product information

Description

General description

The Axial Wall Fan Extractor A-E 304 M is designed for efficient ventilation in various commercial and industrial settings. With a robust construction and weather-resistant features, it is suitable for use in environments such as warehouses, hospitals, clubs, offices, theaters, factories, and gyms.

Technical specifications

Voltage: 230 V ~ 50 Hz

Housing colour: hammered grey

Housing material: cold-rolled, phosphated steel with weather-resistant epoxy powder coating

Nominal size: 300 mm

Speed levels: 1

Wattage: 80.5 W

Amperage: 0.35 A

Revolutions per minute: 1400

Airflow rate: 1563 m³/h

Sound pressure level Lp-1m: 52.5 dB(A)

Sound pressure level Lp-3m: 43 dB(A)

Sound power level Lw: 63.5 dB(A)

Total pressure Pmax: 130 Pa

IP rating: IP54

Insulation class: I

Media/ambient temperature: -30°C to +50°C

Height: 380 mm

Width: 380 mm

Depth: 84 mm

Total depth: 151 mm

Diameter connector piece: 316 mm

Depth connector piece: 67 mm

Weight: 3 kg

Motor type: maintenance-free, ball-bearing external rotor motor

Thermal overload protection: included

Installation

Mounting options: wall

Usage

Application: suitable for commercial and industrial buildings such as warehouses, hospitals, clubs, offices, theaters, factories, and gyms.

Features

Brand
VORTICE
Colour
Grey
Width
15 cm
Power source
Corded
With integrated lighting
No
With timer
No
Smart
No
Max. flow rate
1563 m³/h
Intended use
Indoor
Diameter
320 cm
Wall mounting possible
Yes
Misting function
No
Height
38 cm
IP rating
IP54
Structure material
Steel
Material
Steel
Operating Mode
Electric
Oscillating
No
Weight
5 kg
Noise level
63.5 dB
Reversible
Yes
On castors
No
Remote control included
No
Voltage
230 V
Motor Type
AC (Alternating Current)
Fan type
Industrial fan
ManoMano Reference
ME6404425
MMID
648992763385
Product code
42216
EAN
8010300422169

Customer reviews

3,5

/ 2 Reviews

Reviews verified by ManoMano

MManoMano Customer

Published on 17/09/2020, Italy

Robust product but disappointing in power, not worth the money
