General description

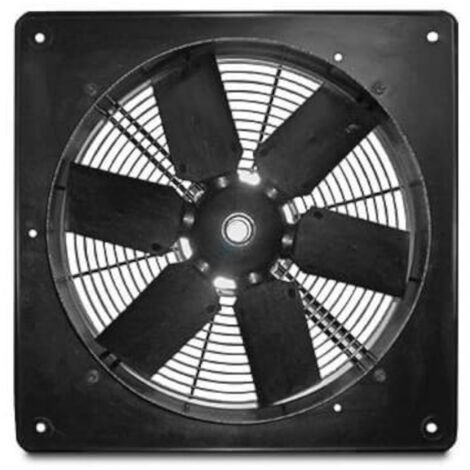

Wall mounted fan EQ HD T Series is designed for heavy-duty applications, featuring an axial-flow construction that ensures high performance and durability. With a protection rating of IP55, this fan is suitable for environments where it may be exposed to water jets. It is available in various models, each offering different airflow capacities, making it ideal for short ducts or direct extraction to the outside.Technical specifications
- Voltage: 400 Volt ~ 50/60 Hertz
- Power options: 90 W to 650 W depending on the model
- Current consumption: 0.22 A to 1.3 A
- Nominal diameter: 250 mm to 600 mm
- Maximum RPM: 800 to 1400
- Maximum airflow: up to 12,000 m³/h
- Total pressure: up to 200 Pa
- Sound pressure level: 47 dB(A) to 74 dB(A) at 2m
- Weight: 5.0 kg to 16.4 kg
Compatibility and accessories
- Reversible operation possible with a compatible reversing switch (not included)
Installation
- Designed for wall mounting
- Ideal for installation in areas requiring efficient air extraction
Usage
- Suitable for industrial and commercial applications
- Effective for ventilation in workshops, garages, and other enclosed spaces
