Water Level Sensor - Aquarium Pool Liquid Level Sensor, Stainless Steel Float Switch

~~£26.66~~

Product information

Description

General description

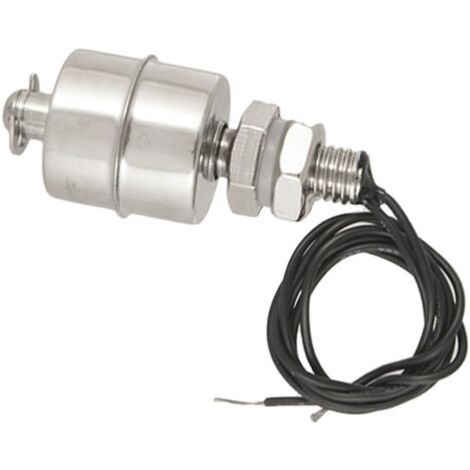

The Water Level Sensor is designed for use in aquariums and pools, featuring a stainless steel float switch that ensures reliable liquid level detection.

Technical specifications

Contacts: NO + NC

Rated Contact Current: 10W

Maximum Switching Voltage: 100V DC

Maximum Switching Current: 0.5A

Maximum Breakdown Voltage: 220V DC

Maximum Charging Current: 1.0A

Maximum Contact Resistance: 100mΩ

Rated Temperature: -30 to +125 Degrees Celsius

Float Ball Material: SUS304

Float Body Material: SUS304

Float Size: 26 x 26mm (1.02" x 1.02")

Thread Diameter: 9.8mm (0.386")

Bottom Clip Diameter: 14.7mm (0.579")

Hex Nut Size: 16.6mm (0.654")

Whole Body Length: 62mm (2.4")

Cable Length: 31cm (12.2")

Net Weight: 39g

Other information

Package Content: 1 x Water Level Sensor

Note: Light shooting and different displays may cause the color of the item in the picture to differ slightly from the real thing.

The allowed measurement error is +/- 1-3cm.

Features

Brand
AOUGO
Weight
200 g
Material
Stainless steel
Colour
Silver-coloured
Warranty
2 year(s)
