WEICON Mini-Solar Wire Stripping Tool for 4-6 mm² (10-12 AWG) Cables
Sold by GravaHaus and 2 other sellers
You may also like
Compare with similar items
Often purchased together
Product information
Description
Description

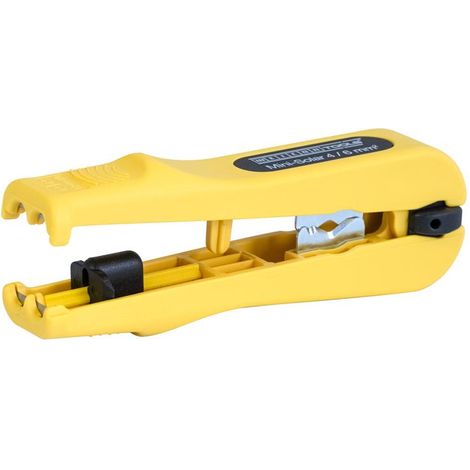

- This mini solar wire stripper is designed for quick and easy stripping of photovoltaic cables with conductor cross-sections of 4.0 or 6.0 mm². It features an integrated length stop for precise stripping from 6 to 28 mm. The tool is reinforced with fiberglass for durability and includes a side cutter suitable for cables up to 10 mm². It provides clean, accurate cuts during stripping and can be locked for compact storage.
Technical Specifications
- Application area: 4/6 mm² (12/10 AWG)
- Length: 125 mm
- Max stripping length: 28 mm
- Min stripping length: 6 mm
- Material: Glass-fiber reinforced polyamide
- Weight: 57 g
- Suitable for cables up to 10 mm²
Compatibility and Accessories
- Compatible with photovoltaic cables such as H1Z2Z2-K
- Includes side cutter for cables up to 10 mm²
Installation
- No adjustment of cutting depth is necessary due to integrated length stop
Usage
- Insert the cable into the tool
- Adjust the length stop to the desired stripping length (6-28 mm)
- Squeeze the handles to strip the insulation cleanly
- Use the side cutter for trimming cables up to 10 mm²
- Lock the tool for compact storage when not in use
Other Information
- Made from durable, fiberglass-reinforced plastic for long-lasting use
Features
- BrandWEICON
- Length12.5 cm
- OriginMade in Germany
- Weight57 g
- Wire diameter6 mm
- Integrated cable cutting functionYes
- MaterialPolyamide
- Opening mechanismYes
- Electrical protectionYes
- Type of wire stripperManual
- ManoMano ReferenceME86089086
- MMID920037752780
- Product code52004003 4024596095918
- EAN4024596095918
