Weld On 4 Link Kit Brackets 2500lbs Bags Air Ride Suspension 2.75 Axle Mount

Important!!!

The connecting rods will be randomly shipped in black or silver, please refer to the product actually received.

Application

for Universal Rear Weld-On Triangulated 4 Link Suspension Kit with Two 2500 Air spring Bags & Rear Air spring Bag Mounts;

for Most Pickup Trucks, Hotrod, Ratrod or Classic Car with 2.75" Axle Tube;

for Ford F150/F250;

for Ford pickup truck 1948;

for Ford Ranger 1991;

for GMC Sierra；

for Chevrolet Silverado;

for Jeep Cherokee XJ;

for Jeep CJ-7 4WD;

for Jeep Wrangler TJ 1997;

for Dodge Ram 1500 2500 3500, etc;

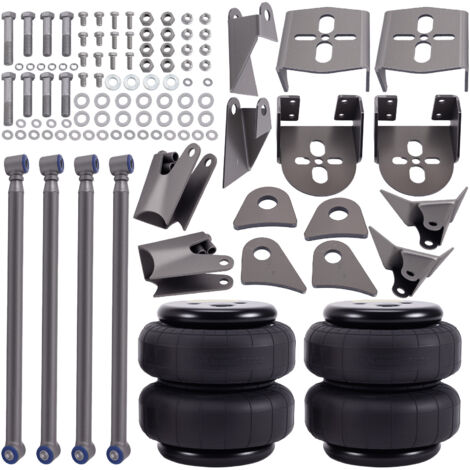

Package Includes

4 x Heavy Duty Steel Bars
4 x Zinc Plated Steel Rod Ends W/ Urethane Bushings
2 x Steel, Weld-On Triangulated Frame Mounts
2 x Steel, Weld-On Lower Axle Tube Mounts
4 x Steel, Weld-On Center Link Axle Mounts
2 x Steel, Weld-On Side Frame Mounts
8 x Button Head Bolts with Nyloc Nuts
2 x Weld-On Lower Axle Bag Mount
2 x Weld-On Upper Frame Bag Mount
2 x Standard 2500 Single 1/2"npt Port Air Spring Bags


4 Link Bar Dimensions

Tubing Outside Diameter :1.25"
Tubing Thick Wall :0.197"
All Four Bars :24.00"

Specs of bag

Capacity: 2500 LBS / each air spring bag
Diameter: 6"
Extended:8"
Closed:2.75"
Two Top Mounting Holes : Approx 1-3/4" from Eye to Eye
Bottom has One Mounting Hole in Center
All mounting holes are 3/8"-16 UNC

Feature

Provide better handing and comfort ride for you.
Design for comfort suspension
Heavy duty double convoluted crimped

Notice

Please feel free to contact for whatever we can help!

The rod is silver or black and is shipped randomly. Please refer to the actual product received.
