600x1560mm Designer Radiator Horizontal White Oval Tube Column Rads Double Panel

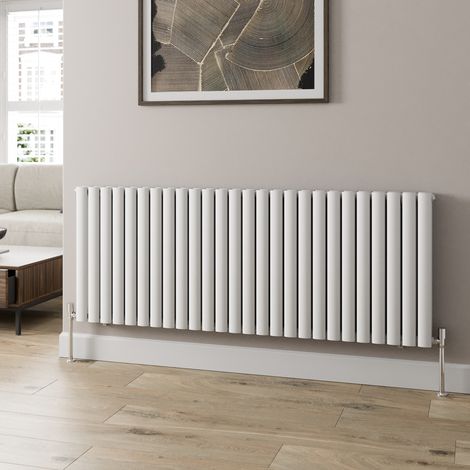

The Galiflo Horizontal Oval Tube Double Panel Designer Radiator is a contemporary radiator with a double panel design for efficient heating. Its white finish and horizontal oval tubes make it suitable for modern interiors.

• Double panel design for increased heat output and efficiency.
• Oval tube profile with a white finish (RAL 9016) for a modern look.
• Horizontal orientation suitable for standard wall mounting.
• Constructed from mild steel for durability and thermal conduction.
• Works with hot water central heating systems; standard G1/2" inlet connection.
• Includes fixings and brackets for installation.
• Certified to BS EN 442 standards.

Specifications:

• Style: Modern
• Panel Configuration: Double
• Panel Profile: Oval
• Colour: White
• Finish: RAL 9016
• Orientation: Horizontal
• Material: Mild Steel
• Height: 600mm
• Width: 1560mm
• Depth: 78mm
• Projection from wall (including brackets): 83mm
• Weight: 20.19kg
• Tube Quantity: 52
• Pipe Centres: 560mm
• Wall to Centre Tapping: 53mm
• Angled TRV Pipe Centres: 1640mm
• Straight TRV Pipe Centres: 1630mm
• Installation Type: Hot Water
• Inlet Connection: G1/2 inches
• Max Working Pressure: 4 bars
• Max Working Temp.: 90°C
• BTU Output (Delta 50): 5997
• BTU Output (Delta 30): 3129
• BTU Output (Delta t60): 8499
• Watts Output (Delta 50): 1759
• Watts Output (Delta 30): 918
• Watts Output (Delta 65): 2840
• Valves Included: No
• Certification: BS EN 442
