General description

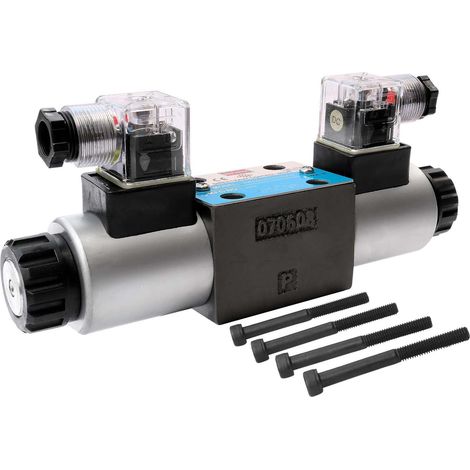

The CETOP3/NG6 Solenoid Operated Modular Directional Control Valve is designed for high flow directional control in hydraulic winches. This three-position 24V valve is used to start, stop, and direct oil flow efficiently.
Technical specifications
- Max flow rate: 80 l/min
- Max working pressure (P, A, B ports): 31.5 MPa (315 bar / 4500 psi)
- Max working pressure (T port): 16 MPa
- Weight: 2.2 kg
- Hydraulic fluid: Mineral Oil
- Seal material: NBR Seals
- Temperature range: -30 to +80 °C
- Viscosity range: 2.8 to 500 mm²/s
- Oil cleanliness class according to ISO 4406: Class 20/18/15
Other information
- Features double 24V coils
- Removable DIN plug connector with clear cover, cable gland, and LED indicator
- Configuration: Spring centered P open to Tank, A & B Blocked
- Manual override feature
- Industry-leading lifetime warranty on mechanical components and 3 years warranty on electrical components
