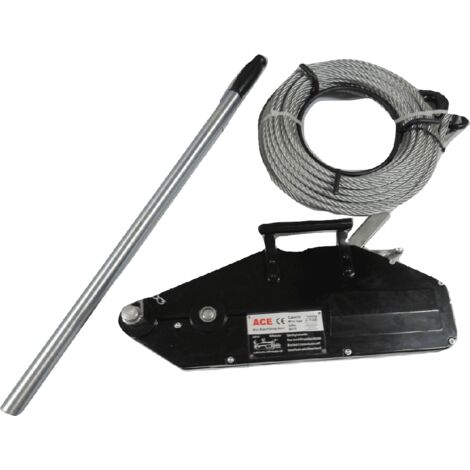

Wire Rope Pulling Hoist Winch 1600KG (ACE 1.6T Lifting 2.5T Puller with 20M Rope)

Name: Wire Rope Pulling Hoist Winch 1600KG (ACE 1.6T Lifting 2.5T Puller with 20M Rope)
Brand: SECUREFIX DIRECT
SKU: SFRH16
Price: 178.95 GBP
Availability: InStock
Rating: 4.33 (3 reviews)

Sold by SecureFix Direct

Product information

Description

General description

The Wire Rope Pulling Hoist Winch is a versatile and portable unit designed for pulling, lifting, lowering, and securing loads. It is easy and safe to use, making it suitable for various applications including construction, oil and chemical industries, mines, quarries, and agricultural and forestry tasks. Additionally, its black finish allows it to blend into theatre backgrounds.

Technical specifications

Pulling Capacity: 2500 KGS

Lifting Capacity: 1600 KGS

Wire Rope Diameter: 11 MM

Wire Rope Length: 20 Metres

Machine Dimensions (L x H x W): 545 MM x 284 MM x 97 MM

Closed Handle Length: 692 MM

Open Handle Length: 1200 MM

Anchor Point Jaw Width: 49 MM

Distance Between Anchor Pin & Body: 51 MM

Anchor Pin Diameter: 29 MM

Wire Rope Hook Opening: 21 MM

Max Diameter Pin To Use In Hook: 14 MM

Hook Dimensions (W x L): 84 MM x 135 MM

Other information

Supplied with 20 metres of wire rope and a handle

Wire rope fitted with a hook and safety catch

Overload protection for enhanced safety

Made from an aluminium body with steel inner parts

Supplied with a test certificate

Please note: Colour of hook on wire rope may differ from the picture

We carry a huge variety of spares for this machine and offer a wide range of lifting tackle

Features

Brand
SECUREFIX DIRECT
NF certification
NF545
Warranty
1 year(s)
Colour
Multicolour
Maximum load
1600 kg

Customer reviews

4,3

/ 3 Reviews

Reviews verified by ManoMano

CChristopher

Published on 01/02/2024, United Kingdom

Found the instructions that were in the box a little confusing. Probably lost in translation.

DDavid

Published on 30/01/2024, United Kingdom

Good product, does the job, cheaper than other similar products on the market.

1 person found this helpful

JJohn

Published on 26/09/2023, United Kingdom

Havn't used it yet, but have another identical one which is excellent, very good value for money and easier to use than a very expensive but old Tirfor which was always very stiff to unlatch.
