General description
The Wireless Light Switch is a convenient and innovative solution for controlling your lighting without the need for complex wiring. Utilizing 433 MHz RF technology, this switch allows you to operate devices from a distance of up to 50 meters in open spaces. Its strong signal can penetrate walls, floors, and doors, making it versatile for various applications in homes, offices, and more.Technical specifications
- Operating voltage: AC 85V ~ 250V
- Maximum current: 10A
- RF frequency: 433 MHz
- Encoding support: learning code 1527
- Sensitivity reception: > 97 dBm
- Operating temperature: -30 ~ +80 °C
- Reception range: approximately more than 20 meters indoors
- Standing current: < 5 mA
- Relay receiver size: 47 * 42 * 23 mm
- Wireless switch size: 86 * 86 * 13 mm

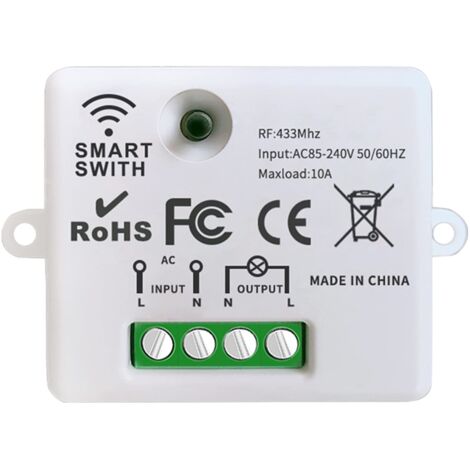

Installation
The installation process is straightforward and requires no wiring. The wireless switch can be attached to any surface using double-sided tape or screws. The compact receiver can be easily hidden within most electrical enclosures or junction boxes, or it can be secured to a board with screws.Usage
This wireless switch allows you to control your lighting or other devices from anywhere within range. You can easily turn devices on or off using the wireless switch, making it ideal for various settings, including homes, farms, factories, and offices. Each receiver can store up to 10 wireless switches, enabling multiple users to control the same device.Other information
The wireless switch requires a 12V 27A battery, which can last for about 5 years and is replaceable after disassembly.
