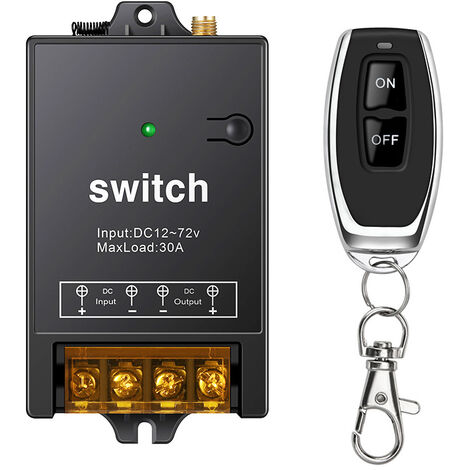

Wireless Remote Control Switch 12v Single Circuit DC Wireless Switch Remote Control Switch (Black)

Product information

Description

General description

Wireless Remote Control Switch 12V Single Circuit DC Wireless Switch is designed for various applications including water pumps, motors, lamps, and battery cars. This smart switch model GLK-DC-X1 operates on a frequency of 433MHz and offers a reliable remote control solution.

Technical specifications

Operating voltage: 12V, 24V, 36V, 48V, 60V, 72V

Total load power: 12V ≤ 350W, 24V ≤ 700W, 36V ≤ 1050W, 48V ≤ 1400W, 60V ≤ 1800W

Working temperature: -20℃ to 50℃

Relay: 40A

Product size: 54mm x 84mm x 28mm

Installation

To set up the self-locking mode, power on the controller and press and hold the learning key for 3 seconds until the indicator light flashes.

For interlock mode, power on the controller, press and hold the learning key for 5 seconds until the indicator light flashes twice.

Usage

To pair the remote control, press the button on the remote after the learning key is activated; the indicator light will flash to confirm successful code matching.

To clear the code, press and hold the learning key for 8 seconds while the controller is powered on; the indicator light will flash four times to indicate success.

The manual switch on the controller can be used to turn the output on and off by pressing the learning button.
