Wireless Remote Control Switch, Single-Circuit 12V DC Wireless Remote Control Switch (White)
You may also like
Compare with similar items
Product information
Description

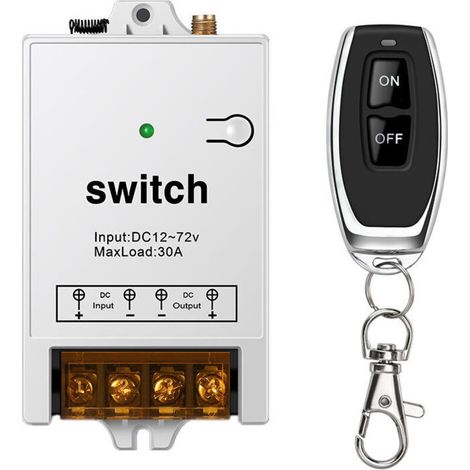

12V Wireless Remote Control Switch Single Circuit DC Wireless Switch Remote Control Switch Smart Switch for Water Pump Light
Model GLK-DC-X1
Type Single Circuit Remote Control Switch
Operating Voltage 12V 24V 36V 48V 60V 72V
Operating Frequency 433MHz
Total Load Power 12V≤350W 24V≤700W 36V≤1050W 48V≤1400W 60V≤1800W
Remote Control Distance Different distances can be adjusted according to needs
Operating Temperature -20℃-50℃
Application DC pump Water Motor Lamp Car Battery, etc.
Product Name】DC Remote Control Switch
【Working Frequency】433MHz
Product Model】GLK-DC-X1
< p>Operating Voltage】DC12V-72V
Product Color】Black White
Relay】40A
Product Size】54*84*28mm
< >Operating Mode】Manual Self-Locking
Remote Control Distance】Optional with different remote control distances
Self-Locking Mode: When the controller is powered on, press and hold the learning button for 3 seconds; the indicator light will flash.
Release the button, press the remote control button; the indicator light will flash 3 times, indicating successful code matching.
Locking Mode: Turn on the controller, press and hold the learning button for 5 seconds; the indicator light will flash twice.
Release the button, press the remote control power button; the indicator light will flash 3 times consecutively. Then press the remote control button; the indicator light will flash 2 times, indicating successful code matching.
Clear Code: With the controller connected to the power supply, press and hold the learning button and wait 8 seconds; the indicator light will flash 4 times consecutively.
Indicates successful code erasure
Manual switch: The learning button on the controller can control the output to turn on and off; press it to turn on and press it again to turn off.
Features
- BrandTEHTUY
- Length1 cm
- Width1 cm
- Height1 cm
- Voltage12 V
