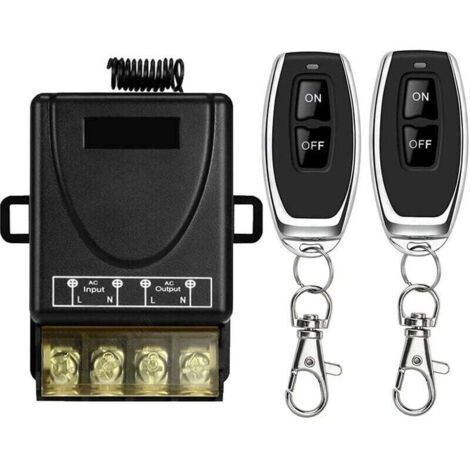

Wireless remote control switch with high power of 433 MHz, remote control RF AC 220 V/240 V/110 V 30 A for lights, water pumps, electrical appliances and agricultural products.

433 MHz potent RF signal: The wireless remote control switch with relay, which uses 433 MHz radio frequency technology, offers a potent signal that can penetrate walls, floors and doors. The EV1527 learning code chip increases the security of the remote control system. You can control any device connected to the relay receiver through the transmitter that connects to a reliable range. Easy to use: Extremely easy configuration and repair. It has 3 operating modes (momentary, switchable and locked). You can easily install it as required. The operating mode is adjustable. This device is configured in enclaved mode. The “ON” button turns on and the “OFF” button turns on. Remote control switch with high power relay of 30 A. Widely used. The product can be used in hotels, granjas, factories, offices, laboratories, supermarkets, etc. Wireless remote control applications include simple domestic remote control applications with automation systems such as lights, water pumps, water heaters, wireless security alarms, ventilators, lamps, wireless door alarms, ventilation devices, monitors, printers, sources and other electrical equipment, etc. 0PIDW6G-uvRZXz8yF5RyZ-KltnGDHXzGyOvBZYd8vSKakEDXrCmiWUWuZetNaSJ65uFpQdYiI5nyO_oGzicU_3U1KdDzhMNs14aE5ixtJr4rO txGNjAySD9m1WUZzlLGMxaNecJxrm8dEmOlYzmusP7SfLanlmdpLbBevgPA7oCOqYQbKm9A4wkcJro7gUJV8X131ipu1aLbdhdMr_xuswbgY=" datos-orig-src="https://cdn.manomano.com/recursos-externos/AAHKMJXYDAFdJAOAIMEbOAchlkWZ0oakZn_uVZ0mPidMNbILvCvspZ4oG3fPgIqc1P26RdPiG8KHKUtbl W5_ULKvLD1OHzwX-jolGWPZGyLZfGPHDpzrIaAiKUQisWuezaM17LWrHGv9l0tJkU7jddaar187aeJzmtgIUizLBumG8maj5dAnlov0HCG9N3LdhjXzjwKJio42EZuoGfnyPfP1">

Package includes

• 1 RF relay receiver
• Remote controls (battery included)

Cantidad según A sus opciones

• 1 product manual

Product settings

AC 85 V~265 V 30 A

• Voltage: AC 85 V~265 V
• Maximum current: 30 A
• RF frequency: 433 MHz
• Compatible code: learning code 1527
• Receiving sensitivity: > 97 dBm
• RF operating mode: ASK super-heterodyne reception
• Reception temperature function: -30 ~ +80 °C
• Receiving range: Wide range, less than 50 meters
• Corriente en espera: <5 mA

Modo blocked

Presione the "ON" button will cause the relay to come on; Press the "OFF" button so that the relay turns off.

Installation

1. Press the learning button (on the receiver) 3 times. Expect 3 seconds.
2. Press the “ON” button on the remote control. Hope for 3 seconds. Press the “OFF” button of the remote control. ¡Listo! " origen-de-datos="https://cdn.manomano.com/recursos-externos/AAHKMJXYDAFdJAOAIMEbOAchlkWZ0oakZn_uVZ0mPidMNbILvCvspZ4oG3fPgIqc1P26RdPiG8KHKUtblW5_ULKvLD1OH zwX-jolGWPZGyLZfEu9G-DDtYVHzwuJEKPtQiCYjHteUfRlFoztZQUzclhagNMUX-zQIXlFQf8CM LOzqAwsMZyridnETD_Mj-1MI3t2kq2qR6PrJ7XqvxezG7SByCYKvJ-sRQWVUTk8cGbwyA==">

   Modo blocked



   reinicio



   Cable diagram

   Depending on the different cases of use, there are various types cable methods, a flexible process
